LS產電XGB系列PLCCPU模塊XGK-CPUH
點擊圖片查看原圖
品牌： LS產電
品牌： LS
單價： 面議
所在地： 上海
有效期至： 長期有效
最后更新： 2024-06-09 17:17
瀏覽次數： 656
詢價
店鋪基本資料信息

 產品詳細說明

 產品簡介：

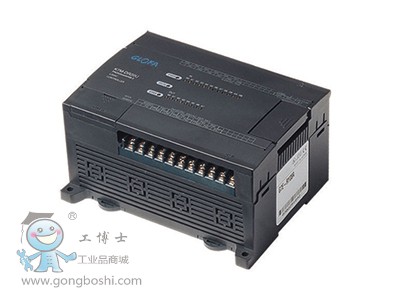

LS產電代表下一代技術的XBC主機。這2款一體式主機同屬XGT Family （包括XGK、XGB、XGI、XGR以及XGT Panel系列）成員的XGB系列新品。尤其是XBC主機，使用兼容技術，與XBMS共用一套擴展模塊，該產品不但繼承了原有Master-K K120s系列的優點和特點，而且充分利用了當前PLC行業新技術的發展成果，同時該產品的后續升級功能也將進一步完善。

QQ截圖20160709194206
QQ截圖20160709194227
QQ截圖20160709194252

QQ截圖20160709194242
XGT（模塊型）         型號           說明

LS產電 CPU模塊     XGK-CPUH       CPU Module(0.028μs), Max. I/O 6,144 points, Memory 64 ksteps
LS產電 CPU模塊     XGK-CPUS        CPU Module(0.084μs), Max. I/O 3,072 points, Memory 32 ksteps
LS產電 CPU模塊     XGK-CPUE       CPU Module
LS產電 CPU模塊     XGK-CPUA       CPU Module
LS產電電源模塊      XGP-ACF1        Input Power Free Voltage, Output DC 5V:3A, DC 24V:0.6A
LS產電電源模塊      XGP-ACF2        Input Power Free Voltage, Output DC 5V:6A
LS產電電源模塊      XGP-AC23         Input Power AC 220V, Output DC 5V: 8.5 A
LS產電電源模塊      XGP-DC42         Input Power DC 24V, Output DC 5V:6A
LS產電 PLC基板      XGB-M04A       Base board, 4 slots for I/O Module
LS產電 PLC基板      XGB-M06A       Base board, 6 slots for I/O Module
LS產電 PLC基板      XGB-M08A       Base board, 8 slots for I/O Module
LS產電 PLC基板      XGB-M12A       Base board, 12 slots for I/O Module
LS產電擴展基板      XGB-E04A         Base board(for Expansion), 4 slots for I/O Module
LS產電擴展基板      XGB-E06A         Base board(for Expansion), 6 slots for I/O Module
LS產電擴展基板      XGB-E08A         Base board(for Expansion), 8 slots for I/O Module
LS產電擴展基板      XGB-E12A         Base board(for Expansion), 12 slots for I/O Module
LS產電擴展電纜      XGC-E041         Cable between Main and Expansion Base (0.4m)
LS產電擴展電纜      XGC-E061         Cable between Main and Expansion Base (0.6m)
LS產電擴展電纜      XGC-E121         Cable between Main and Expansion Base (1.2m)
LS產電擴展電纜      XGC-E301         Cable between Main and Expansion Base (3.0m)
LS產電擴展電纜      XGC-E501         Cable between Main and Expansion Base (5.0m)
LS產電擴展電纜      XGC-E102         Cable between Main and Expansion Base (10m)
LS產電擴展電纜      XGC-E152         Cable between Main and Expansion Base (15m)
LS產電擴展接頭      XGT-TERA        Expansion Terminator(基板終端電組)
LS產電輸入模塊      XGI-D21A         DC 24V Input 8 points, (Sink/Source)
LS產電輸入模塊      XGI-D22A             DC 24V Input 16 points, (Sink/Source)
LS產電輸入模塊      XGI-D22B         DC 24V Input 16 points, (Source)
LS產電輸入模塊      XGI-D24A         DC 24V Input 32 points, (Sink/Source)
LS產電輸入模塊      XGI-D24B          DC 24V Input 32 points, (Source)
LS產電輸入模塊      XGI-D28A             DC 24V Input 64 points, (Sink/Source)
LS產電輸入模塊      XGI-D28B         DC 24V Input 64 points, (Source)
LS產電輸入模塊      XGI-A12A             AC 110V Input 16 points
LS產電輸入模塊      XGI-A21A         AC Free Voltage Input 8 points
LS產電輸出模塊      XGQ-RY1A        Relay Output 8 points
LS產電輸出模塊      XGQ-RY2A        Relay Output 16 points
LS產電輸出模塊      XGQ-RY2B        Relay Output 16 points(Surge Killer:Varister, CR Absorber)
LS產電輸出模塊      XGQ-TR2A       Tr.(NPN Type) Output 16 points(DC12/24V 0.5 A)
LS產電輸出模塊      XGQ-TR2B        Tr.(PNP Type) Output 16 points(DC12/24V 0.5 A)
LS產電輸出模塊      XGQ-TR4A       Tr.(NPN Type) Output 32 points(DC12/24V 0.1A)
LS產電輸出模塊      XGQ-TR4B        Tr.(PNP Type) Output 32 points(DC12/24V 0.1A)
LS產電輸出模塊      XGQ-TR8A       Tr.(NPN Type) Output 64 points(DC12/24V 0.1A)
LS產電輸出模塊      XGQ-TR8B        Tr.(PNP Type) Output 64 points(DC12/24V 0.1A)
LS產電輸出模塊      XGQ-SS2A         SSR(Current Sink Type) Output 16 points(AC 110/220V 0.6A)
LS產電混合模塊      XGH-DT4A       Hybrid I/O , DC24V Input 16 Points, Tr. Output 16Points
LS產電模擬量模塊 XGF-AV8A        Analog Input 8 Channels, DC1~5V, 0~5V, DC0~10V, -10~10V
LS產電模擬量模塊 XGF-AC8A        Analog Input 8 Channels, DC4~20mA, 0~20mA
LS產電模擬量模塊 XGF-AD4S        Analog Input 4 Channels, DC1~5V,0~5V,0~10V,-10~10V,4~20mA,0~20mA
LS產電模擬量模塊 XGF-AD8A
LS產電模擬量模塊 XGF-DV4A        Analog Output 4 Channels, DC1~5V, 0~5V, 0~10V, -10~+10V
LS產電模擬量模塊 XGF-DV8A
LS產電模擬量模塊 XGF-DV4S         Analog Output 4 Channels, DC1~5V, 0~5V, 0~10V, -10~+10V(Insulation)
LS產電模擬量模塊 XGF-DC4A        Analog Output 4 Channels, DC4~20mA, 0~20mA
LS產電模擬量模塊 XGF-DC08A
LS產電模擬量模塊 XGF-DC4S         Analog Output 4 Channels, DC4~20mA, 0~20mA(Insulation)
LS產電特殊模塊      XGF-TC4S         Thermocouple Input, 4 Channels(Type : K, J, E, T, B, R, S, N, C)
LS產電特殊模塊      XGF-RD4A        Resistive Temperature Detectors, 4Channels (Pt100, Jpt100)
LS產電特殊模塊      XGF-RD4S         Resistive Temperature Detectors, 4Channels (Pt100, Jpt100-Insulation)
LS產電特殊模塊      XGF-HO2A       High Speed Count Module, 2 Channel 200kpps,Open Collector Type
LS產電特殊模塊      XGF-HD2A       High Speed Count Module, 2 Channel 500kpps,Line Drive Type
LS產電特殊模塊      XGF-PO1A        Position Module, 1 axis, Open Collector type Output
LS產電特殊模塊      XGF-PO2A        Position Module, 2 axis, Open Collector type Output
LS產電特殊模塊      XGF-PO3A        Position Module, 3 axis, Open Collector type Output
LS產電特殊模塊      XGF-PD1A        Position Module, 1 axis, Line Drive type Output
LS產電特殊模塊      XGF-PD2A        Position Module, 2 axis, Line Drive type Output
LS產電特殊模塊      XGF-PD3A        Position Module, 3 axis, Line Drive type Output
LS產電特殊模塊      XGF-M16M      Motion Control, Mechatrolink-Ⅱ 16-axis, speed 10Mbps)
LS產電通訊模塊      XGL-CH2A        RS-232C/422 (Each 1 channel)
LS產電通訊模塊      XGL-C22A         RS-232C 2 Channels
LS產電通訊模塊      XGL-C42A         RS-422 2 Channels
LS產電通訊模塊      XGL-EFMF       Fast Ethernet(Fenet, Optical Cable)
LS產電通訊模塊      XGL-EFMT       Fast Ethernet(Fenet, Coaxial Cable)
LS產電通訊模塊      XGL-EDMF       Fast Ethernet(FDEnet, Optical Cable)
LS產電通訊模塊      XGL-EDMT      Fast Ethernet(FDEnet, Coaxial Cable)
LS產電通訊模塊      XGL-RMEA      R-Net Master, 1Mbps
LS產電通訊模塊      XGL-DMEA      Device Net (Speed Max.500Kbps / Distance: Max.500m)
LS產電通訊模塊      XGL-PMEA       Profibus-DP (Speed Max. 12Mbps / Distance: 1,200m)
LS產電占空模塊      XGT-DMMA    Dummy module for Empty I/O Slots
LS產電PLC軟件       XG5000     Program Editing & Engineering Software
LS產電PLC軟件       XG-PD      Network Setting & Monitoring & Diagnosis Tool
LS產電PLC軟件       APM Package     Positioning Parameter/Data Setting & Monitoring Tool
LS產電人機界面(HMI)                                           說明

LS產電觸摸屏 PLC,XP80-TTA/AC    TFT 256 Color Touch Screen, 12.1"
LS產電觸摸屏 PLC,XP70-TTA TFT 256 Color Touch Screen, 10.4"
LS產電觸摸屏 PLC,XP50-TTA TFT 256 Color Touch Screen, 8.4"
LS產電觸摸屏 PLC,XP30-TTA TFT 256 Color Touch Screen, 5.7"
LS產電觸摸屏 PLC,XP30-BTA LCD Mono Touch Screen, Blue 5.7"

LS產電觸摸屏 PLC,XP31-BTE
LS產電文本顯示器 XP10BKA/DC   文本顯示微型人機界面

LS產電文本顯示器 XP10BKB/DC    文本顯示微型人機界面(帶RTC時鐘功能)

LS產電觸摸屏 PMU-330BT      LCD Mono Touch Screen, Blue單色, 5.7"

LS產電觸摸屏 PMU-330BTE    LCD Mono Touch Screen, Blue單色, 5.7"

LS產電觸摸屏 PMU-330ST       STN 256 Color Touch Screen, 5.7"

LS產電觸摸屏 PMU-330TT      TFT 256 Color Touch Screen, 5.7"

LS產電觸摸屏 PMU-530ST       STN 256 Color Touch Screen, 7.5"

LS產電觸摸屏 PUM-530TT      TFT 256 Color Touch Screen, 7.5"

LS產電觸摸屏 PMU-530TTS    TFT 256 Color Touch Screen, 7.5"

LS產電觸摸屏 PMU-730ST       STN 256 Color Touch Screen, 10.4"

LS產電觸摸屏 PMU-730STS     STN 256 Color Touch Screen, 10.4"

LS產電觸摸屏 PMU-730TT      TFT 256 Color Touch Screen, 10.4"

LS產電觸摸屏 PMU-830TT      TFT 256 Color Touch Screen, 12.1"

LS產電觸摸屏 PMU-Editor       Screen Editor Manual with Software Package.
