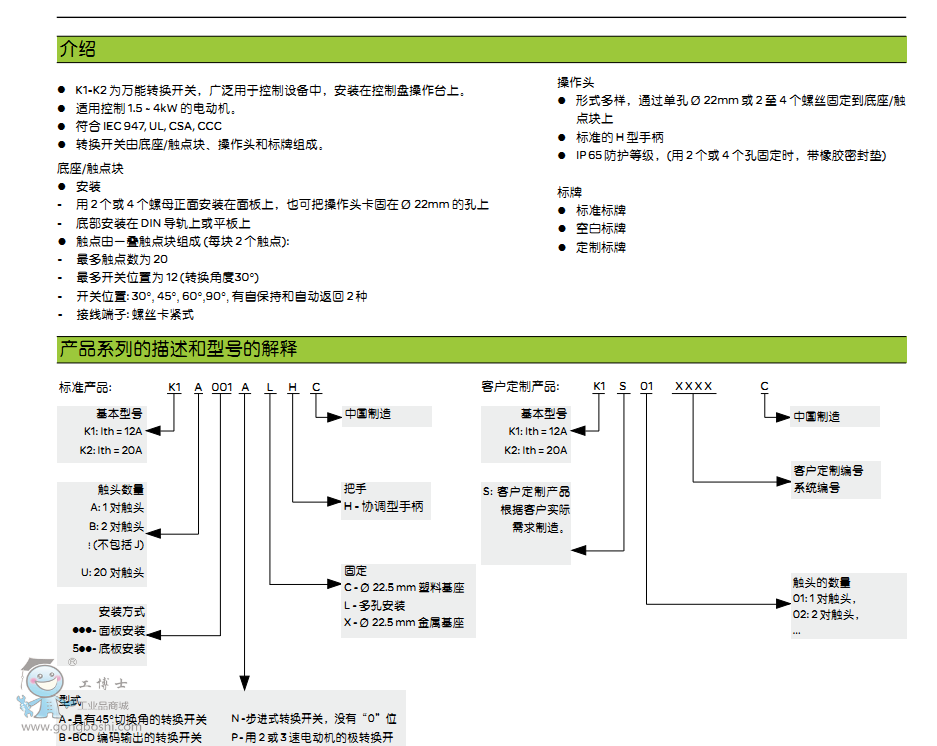

lK1-K2為萬能轉換開關，廣泛用于控制設備中，安裝在控制盤操作臺上。

l適用控制1.5~4kW的電動機。

l符合IEC947,UL,CSA,CCC

l轉換開關由底座/觸點塊、操作頭和標牌組成。

底座/觸點塊

l安裝

-用2個或4個螺母正面安裝在面板上，也可把操作頭卡固在?22mm的孔上

-底部安裝在DIN導軌上或平板上

l觸點由一疊觸點塊組成(每塊2個觸點):

-*多觸點數為20

-*多開關位置為12(轉換角度30°)

-開關位置:30°,45°,60°,90°,有自保持和自動返回2種

-接線端子:螺絲卡緊式

操作頭

l形式多樣，通過單孔?22mm或2至4個螺絲固定到底座/觸

點塊上

l標準的H型手柄

lIP65防護等級，(用2個或4個孔固定時，帶橡膠密封墊)

標牌

l標準標牌

l空白標牌

l定制標牌

K1A001ACHC1極45°通斷φ22安裝12A凸輪開關
K1A001ALHC1極45°通斷積木安裝12A凸輪開關
K1A001TCHC斷通自復位30°至“0”位φ22安裝12A凸輪開關
K1A001TLHC斷通自復位30°至“0”位積木安裝12A凸輪開關
K1B001UCHC1極45°轉換帶“0”位φ22安裝12A凸輪開關
K1B001ULHC1極45°轉換帶“0”位積木安裝12A凸輪開關
K1B002ACHC2極45°通斷φ22安裝12A凸輪開關
K1B002ALHC2極45°通斷積木安裝12A凸輪開關
K1B002NCHC單極2位45°步進不帶“0”位φ22安裝12A凸輪開關
K1B002NLHC單極2位45°步進不帶“0”位積木安裝12A凸輪開關
K1B002QCHC單極2位45°步進帶“0”位φ22安裝12A凸輪開關
K1B002QLHC單極2位45°步進帶“0”位積木安裝12A凸輪開關
K1B006TCHC1極315°和45°帶“0”位自復位φ22安裝12A凸輪開關
K1B006TLHC1極315°和45°帶“0”位自復位積木安裝12A凸輪開關
K1B011UCHC1極轉換開關不帶“0”位φ22安裝12A凸輪開關
K1B011ULHC1極轉換開關不帶“0”位積木安裝12A凸輪開關
K1B1002HCHC2極90°通斷轉換φ22安裝12A凸輪開關
K1B1002HLHC2極90°通斷轉換積木安裝12A凸輪開關
K1C003ACHC3極45°通斷φ22安裝12A凸輪開關
K1C003ALHC3極45°通斷積木安裝12A凸輪開關
K1C003GCHC1極3負載并聯開關φ22安裝12A凸輪開關
K1C003GLHC1極3負載并聯開關積木安裝12A凸輪開關
K1C003HCHC3極90°通斷φ22安裝12A凸輪開關
K1C003HLHC3極90°通斷積木安裝12A凸輪開關
K1C003NCHC單極3位45°步進不帶“0”位φ22安裝12A凸輪開關
K1C003NLHC單極3位45°步進不帶“0”位積木安裝12A凸輪開關
K1C003QCHC單極3位45°步進帶“0”位φ22安裝12A凸輪開關
K1C003QLHC單極3位45°步進帶“0”位積木安裝12A凸輪開關
K1D002UCHC2極315°和45°帶“0”位轉換開關φ22安裝12A凸輪開關
K1D002ULHC2極315°和45°帶“0”位轉換開關積木安裝12A凸輪開關
K1D002WCHC2極可逆開關φ22安裝12A凸輪開關
K1D002WLHC2極可逆開關積木安裝12A凸輪開關
K1D004ACHC4極45°通斷φ22安裝12A凸輪開關
K1D004ALHC4極45°通斷積木安裝12A凸輪開關
K1D004HCHC4極90°通斷轉換φ22安裝12A凸輪開關
K1D004HLHC4極90°通斷轉換積木安裝12A凸輪開關
K1D004NCHC單極4位45°步進不帶”0”位φ22安裝12A凸輪開關
K1D004NLHC單極4位45°步進不帶”0”位積木安裝12A凸輪開關
K1D004QCHC單極4位45°步進帶”0”位φ22安裝12A凸輪開關
K1D004QLHC單極4位45°步進帶”0”位積木安裝12A凸輪開關
K1D012QCHC2極2位步進帶“0”位φ22安裝12A凸輪開關
K1D012QLHC2極2位步進帶“0”位積木安裝12A凸輪開關
K1D012UCHC2極不帶“0”位轉換開關φ22安裝12A凸輪開關
K1D012ULHC2極不帶“0”位轉換開關積木安裝12A凸輪開關
K1D024MCHC帶“0”位電壓測量用φ22安裝12A凸輪開關
K1D024MLHC帶“0”位電壓測量用積木安裝12A凸輪開關
K1D034MCHC不帶“0”位電壓測量用φ22安裝12A凸輪開關
K1D034MLHC不帶“0”位電壓測量用積木安裝12A凸輪開關
K1E003WCHC3極可逆開關φ22安裝12A凸輪開關
K1E003WLHC3極可逆開關積木安裝12A凸輪開關
K1E005ACHC5極45°通斷開關φ22安裝12A凸輪開關
K1E005ALHC5極45°通斷開關積木安裝12A凸輪開關
K1E005NCHC單極5位步進不帶“0”位φ22安裝12A凸輪開關
K1E005NLHC單極5位步進不帶“0”位積木安裝12A凸輪開關
K1E005QCHC單極5位步進帶“0”位φ22安裝12A凸輪開關
K1E005QLHC單極5位步進帶“0”位積木安裝12A凸輪開關
K1F003MCHC帶“0”位電流測量用φ22安裝12A凸輪開關
K1F003MLHC帶“0”位電流測量用積木安裝12A凸輪開關
K1F003UCHC3極帶“0”位轉換開關φ22安裝12A凸輪開關
K1F003ULHC3極帶“0”位轉換開關積木安裝12A凸輪開關
K1F006ACHC6極45°通斷開關φ22安裝12A凸輪開關
K1F006ALHC6極45°通斷開關積木安裝12A凸輪開關
K1F013MCHC不帶“0”位電流測量用φ22安裝12A凸輪開關
K1F013MLHC不帶“0”位電流測量用積木安裝12A凸輪開關
K1F013QCHC2極3位45°步進帶“0”位φ22安裝12A凸輪開關
K1F013QLHC2極3位45°步進帶“0”位積木安裝12A凸輪開關
K1F013UCHC3極轉換開關不帶“0”位φ22安裝12A凸輪開關
K1F013ULHC3極轉換開關不帶“0”位積木安裝12A凸輪開關
K1F027MCHC電壓測量轉換開關帶“0”位φ22安裝12A凸輪開關
K1F027MLHC電壓測量轉換開關帶“0”位積木安裝12A凸輪開關
K1H004UCHC4極轉換開關帶“0”位φ22安裝12A凸輪開關
K1H004ULHC4極轉換開關帶“0”位積木安裝12A凸輪開關
K1H014UCHC4極轉換開關不帶“0”位φ22安裝12A凸輪開關
K1H014ULHC4極轉換開關不帶“0”位積木安裝12A凸輪開關
K2A001ACHC1極45°通斷φ22安裝20A凸輪開關
K2A001ALHC1極45°通斷積木安裝20A凸輪開關

DL1CB006BA9S6V1.2W用于XB2,XA2燈泡
DL1CE012BA9S12V2.6W用于XB2,XA2燈泡
DL1CE024BA9S24V2.6W用于XB2,XA2燈泡
DL1CE024NSPBA9S2.6W用于XB2,XA2燈泡
DL1CE048BA9S48V2.6W用于XB2,XA2燈泡
DL1CE130BA9S110-130V2.4W用于XB2,XA2燈泡
DL1CE130NSPBA9S2.4W用于XB2,XA2燈泡
DL1CE220BA9S220-240V2.6W用于XB2,XA2燈泡
DL1CS*220BA9S氖燈220-240V*色燈泡
DL1-LED24*LEDBa9s24V用于XB2(藍色除外)燈泡
DL1-LED246LEDBa9s24V藍色用于XB2燈泡
