參數表節選：的技術參數 V19-G-5M-PVC-TP
產品闡述

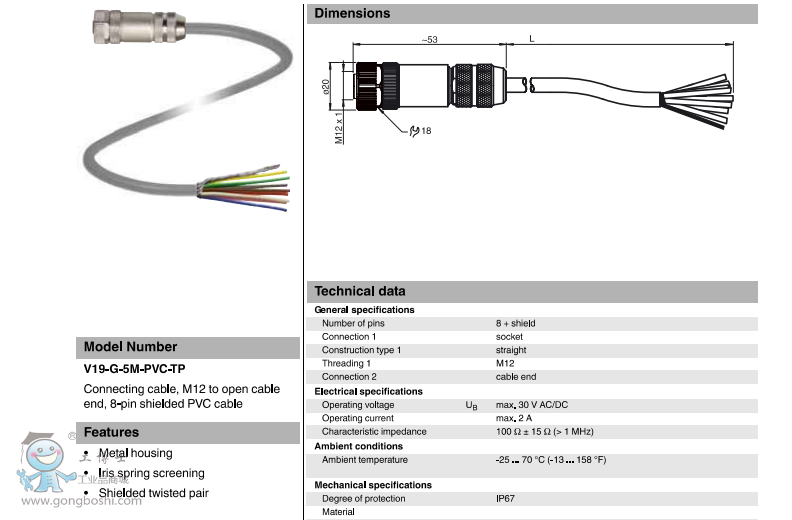

Connecting cable, M12 to open cable end, 8-pin shielded PVC cable
General specifications
Number of pins 8 + shield
Connection 1 socket
Construction type 1 straight
Threading 1 M12
Connection 2 cable end
Electrical specifications
Operating voltage max. 30 V AC/DC
Operating current max. 2 A
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Degree of protection IP67
Material
Contacts CuZn
Contact surface Au
Body Zinc die-casting, nickel-plated
Cable PVC
Core insolation PVC
Cable fine-strand, flexible
Sheath diameter ∅ 6.2 mm
Bending radius > 15 x cable diameter, moving
> 6 x cable diameter, fixed
Color grey
Cores 4 x 2 x 0.14 mm2
Shield grid
Length 5 m
