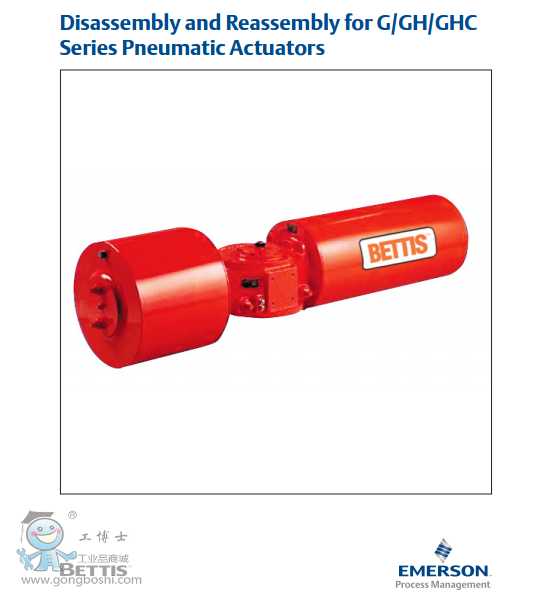

BETTIS G系列 氣動執行機構
點擊圖片查看原圖
品牌： BETTIS
單價： 面議
所在地： 上海
有效期至： 長期有效
最后更新： 2021-03-16 09:48
瀏覽次數： 461
詢價
店鋪基本資料信息

 產品詳細說明
BETTIS G系列 氣動執行機構

A pneumatic, scotch yoke, valve actuator for operating ball, butterfly or plug valves along with louvers, dampers and other 90 degree rotating mechanisms. Suitable for use in demanding SIL-required applications.

Specifications


Power Source
Pneumatic
Product Type
Pneumatic Actuator
Actuation
Spring-return, double-acting
Certifications
SIL 3, CSA, FM, ATEX, IECEx, ABS Atex Directive 94/9 PED 97/23/EC IP66 / IP67M
Control Type
On/Off
Valve Type
Ball, butterfly, plug, triple offset, other quarter-turn devices
Torque/Thrust
Spring-return models in excess of 3,000,000 lbs-in (339,000 Nm), Double-acting 12,581 - 6,000,000 lbs-in (1420 - 678,000 Nm)
Operating Pressure
40-220 psig (3-14 bar)
