TESCOM PH-1800系列 減壓調壓閥-艾默生EMERSON

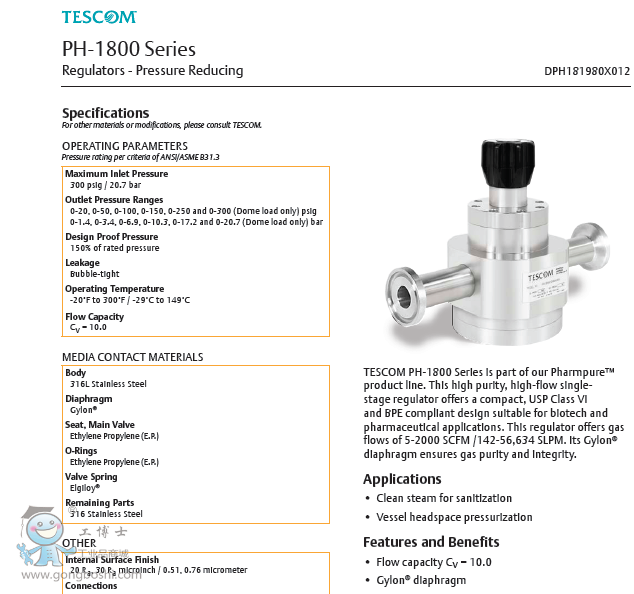

TESCOM PH-1800 Series is part of our Pharmpure™ product line. This high purity, high-flow singlestage regulator offers a compact, USP Class VI and BPE compliant design suitable for biotech and pharmaceutical applications. This regulator offers gas flows of 5-2000 SCFM /142-56,634 SLPM. Its Gylon® diaphragm ensures gas purity and integrity.
Applications
• Clean steam for sanitization
• Vessel headspace pressurization
Features and Benefits
• Flow capacity Cv = 10.0
• Gylon® diaphragm
• Low droop, high-flow
• Five outlet pressure ranges
• Accurately regulates pressures up to 250 psig / 17.2 bar
• Welded sanitary connections and tube stubs are available
• Soft goods are USP Class VI compliant
• ASME BPE 2009 compliant design
