| Drive Bay | Front-accessible | |
| 5.25" | 3 | |
| 3.5" | 1 | |
| Cooling | Fan | 1 (85 CFM) |
| Air Filter | Yes | |
| Miscellaneous | Slide Rail | General Device C-300 series supported (Not included) |
| Indicator | Power & HDD activity | |
| Rear Panel | Reserved one D-SUB 9-pin and one 68-pin SCSI openings | |
| Environment | Operating | Non-Operating |
| Temperature | 0 ~ 40 °C (32 ~ 104 °F) | -20 ~ 60 °C (-4 ~ 140 °F) |
| Humidity | -20 ~ 60 °C (-4 ~ 140 °F) | 10 ~ 95 % @ 40 °C, non-condensing |
| Vibration (5 ~ 500 MHz) | 1 Grms | 2 G |
| Shock | 10 G (With 11 msec duration, 1/2 sine wave) | 30 G |
| Acoustic Noise | Less than 52 dB sound pressure at 5 ~ 28 °C (41 ~ 82 °F) | |
| Altitude | 0 to 3048 m (0 ~ 10,000 ft) | |
| Physical Characteristics | Dimensions (W x H x D) | 482 x 177 x 480 mm (19" x 7" x 18.9") |
| Weight | 16.5 kg (36.3 lb) |

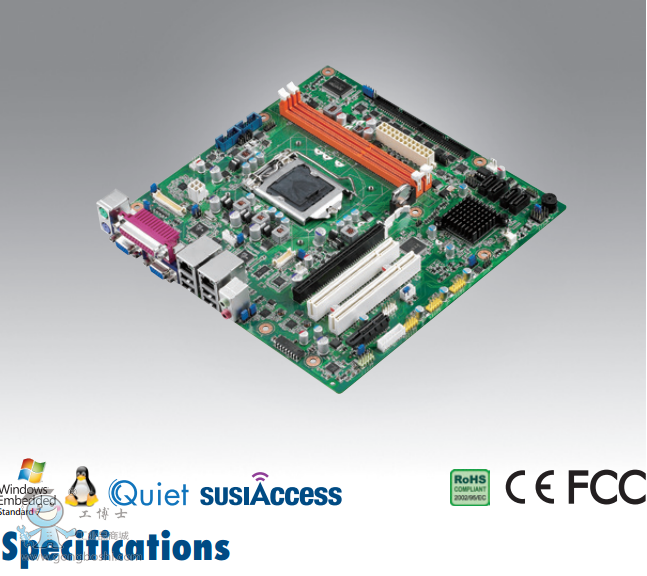

AIMB-501
|
Processor System |
CPU |
Intel Core |
Intel Core |
Intel Core |
Intel Core |
Intel Core |
Intel Core |
Pentium |
Celeron |
|
Core Number |
4 |
4 |
2 |
4 |
4 |
2 |
2 |
2 |
|
|
Max. Speed |
3.4 GHz |
3.0 GHz |
3.3 GHz |
3.4 GHz |
3.1 GHz |
3.3 GHz |
2.9 GHz |
2.50 GHz |
|
|
Integrated Graphics |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
|
L3 Cache |
8 MB |
6 MB |
3 MB |
8 MB |
6 MB |
3 MB |
3 MB |
2 MB |
|
|
Chipset |
H61 |
|
|
|
|
|
|
|
|
|
BIOS |
AMI EFI 64 Mbit SPI |
|
|
|
|
|
|
|
|
|
Expansion Slot |
PCI |
32-bit/33 MHz, 2 slots |
|
|
|
|
|
|
|
|
PCIe x 1 (Gen2) |
500MB/s per direction, 1 slot |
|
|
|
|
|
|
|
|
|
PCIe x16 (Gen3) |
16 GB/s per direction, 1 slot |
|
|
|
|
|
|
|
|
|
Memory |
Technology |
Dual Channel DDR3 1600/1333 MHz SDRAM |
|
|
|
|
|
|
|
|
Max. Capacity |
16 GB/8 GB per DIMM |
|
|
|
|
|
|
|
|
|
Socket |
2 x 240-pin DIMM (Non-ECC) |
|
|
|
|
|
|
|
|
|
Graphics |
Controller |
Intel HD Graphics |
|
|
|
|
|
|
|
|
VRAM |
1GB maximum shared memory with 2GB and above system memory installed |
|
|
|
|
|
|
|
|
|
LVDS |
Supports dual channel 48 bit up to 1920 x 1200 |
|
|
|
|
|
|
|
|
|
CRT |
Yes, supports max. resolution 2048 x 1536 |
|
|
|
|
|
|
|
|
|
DVI |
1 (A2E sku) |
|
|
|
|
|
|
|
|
|
Dual Display |
CRT1+LVDS, CRT1+DVI; CRT1+CRT2 |
|
|
|
|
|
|
|
|
|
Ethernet |
Interface |
10/100/1000 Mbps |
|
|
|
|
|
|
|
|
Controller |
GbE LAN: Realtek 8111E |
|
|
|
|
|
|
|
|
|
Connector |
RJ-45 X 2 |
|
|
|
|
|
|
|
|
|
SATA |
Max Data Transfer Rate |
300 MB/s (SATA 2.0) |
|
|
|
|
|
|
|
|
Channel |
4 |
|
|
|
|
|
|
|
|
|
Rear I/O |
CRT |
2 |
|
|
|
|
|
|
|
|
DVI |
1 (A2E sku) |
|
|
|
|
|
|
|
|
|
Ethernet |
2 |
|
|
|
|
|
|
|
|
|
USB |
4 (A1E: USB 2.0 x 4. A2E: USB 2.0 x 2 /USB 3.0 x 2) |
|
|
|
|
|
|
|
|
|
Parallel |
1 |
|
|
|
|
|
|
|
|
|
Audio |
2 (Mic-in, Line-out) |
|
|
|
|
|
|
|
|
|
Serial |
- |
|
|
|
|
|
|
|
|
|
PS/2 |
2 (1 x keyboard and 1 x mouse) |
|
|
|
|
|
|
|
|
|
Internal Connector |
USB |
6 (USB 2.0) |
|
|
|
|
|
|
|
|
Serial |
10(8 x RS-232, 2 x RS-232/422/485; COM 3 and COM 7 support RS-232/422/485 auto ow control; COM 1 and COM 2 |
|
|
|
|
|
|
|
|
|
IDE |
- |
|
|
|
|
|
|
|
|
|
SATA |
4 (SATA 2.0) |
|
|
|
|
|
|
|
|
|
LVDS & Inverter |
1 |
|
|
|
|
|
|
|
|
|
IrDA |
- |
|
|
|
|
|
|
|
|
|
GPIO |
8-bit GPIO |
|
|
|
|
|
|
|
|
|
Watchdog Timer |
Output |
System reset |
|
|
|
|
|
|
|
|
Interval |
Programmable 1 ~ 255 sec/min |
|
|
|
|
|
|
|
|
|
Power Requirements |
Intel Core i7-2600 3.4GHz, 4GB DDR3 1333MHz x 2pcs |
|
|
|
|
|
|
|
|
|
Power On |
+3.3 V |
+12 V |
-12 V |
5 VSB |
5 V |
|
|
|
|
|
1.05 A |
6.66 A |
0.13 A |
0.49 A |
2.25 A |
|
|
|
|
|
|
Environment |
Operating |
Non-Operating |
|
|
|
|
|
|
|
|
Temperature |
0 ~ 60° C (32 ~ 140° F), depends on CPU speed and cooler solution |
-40 ~ 85° C (-40 ~ 185° F) |
|
|
|
|
|
|
|
|
Physical Characteristics |
Dimensions |
244 mm x 244 mm (9.6" x 9.6") |
|
|
|
|
|
|
|
