威德福三缸工業泵 W60H W60M W60L

點擊圖片查看原圖
品牌: 威德福Weatherford
功率: 45KW
行程: 76.2mm
單價: 面議
所在地: 上海
有效期至: 長期有效
最后更新: 2018-04-05 11:33
瀏覽次數: 340
詢價
店鋪基本資料信息

產品詳細說明
威德福Weatherford三缸工業泵 W60H W60M W60L

Pump Specifications:
Rated (HP, kW) 60 45
Stroke length (in., mm) 3 76.2
Maximum discharge pressure (PSI, Bar)
W60H 5,000 345
W60M 3,200 221
W60L 1,500 103
Rated rod load (lb, kg) 4,750 2,155
API-674 speed, RPM 400
Maximum speed, RPM 500
Minimum speed, RPM 200
Crankshaft dimensions (in., mm)
Diameter 3.00 76.2
Length (both sides) 5.12 130
Keyway, width × depth (in., mm) .750 × .375 19 × 9.5
Oil capacity (gal, l)
Pump 2.0 7.6
Reducer 1.0 3.8
Weight (lb, kg); estimates only
Pump
W60H 1,220 553
W60M 1,160 526
W60L 1,120 508
Reducer 350 159
Mechanical efficiency 90%

Flange Connections:
Pump Model              Discharge Connection Sizes (in., mm)        Suction Connection Sizes (in., mm)
W60H                                 1.25 (31.8) ANSI 2500 RJ                              2.5 (63.5) ANSI 300 FF
W60M                                 1.5 (38.1) API 5000 RJ                                  2.5 (63.5) ANSI 150 FF
W60L(flanged)                    2 (50.8) API 2000 RJ                                     3 (76.2) ANSI 150 FF

W60L(threaded)                  2 (50.8) NPT                                                  3 (76.2) NPT


Standard Equipment:
• Cast aluminum-bronze, forged duplex stainless steel,
or forged carbon steel fluid ends
• Aluminum-bronze or duplex stainless steel stuffing boxes
• Various valve designs offered per fluid end style
• Tungsten carbide coated plungers over stainless steel
base or solid ceramic plungers
• Double extended crankshaft
• Multiple plunger packing arrangements offered

Optional Accessories:
• Weatherford bolt on gear reducers (ratios)
    – 2.34:1   – 2.77:1    – 3.03:1   – 3.50:1
• Packing lubricators
• Customized plunger packing arrangements
• Complete pump packages

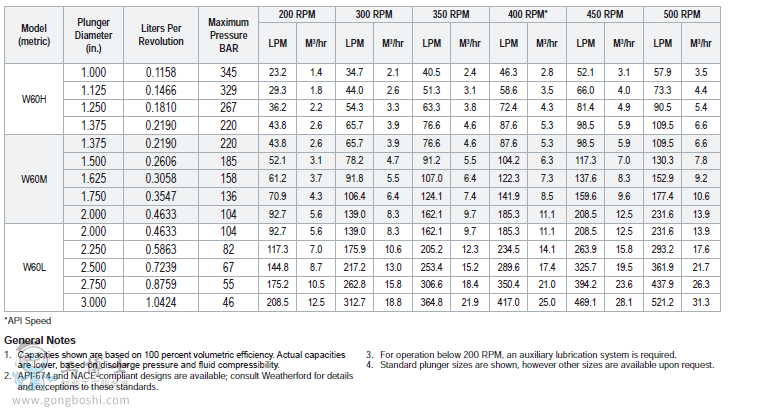

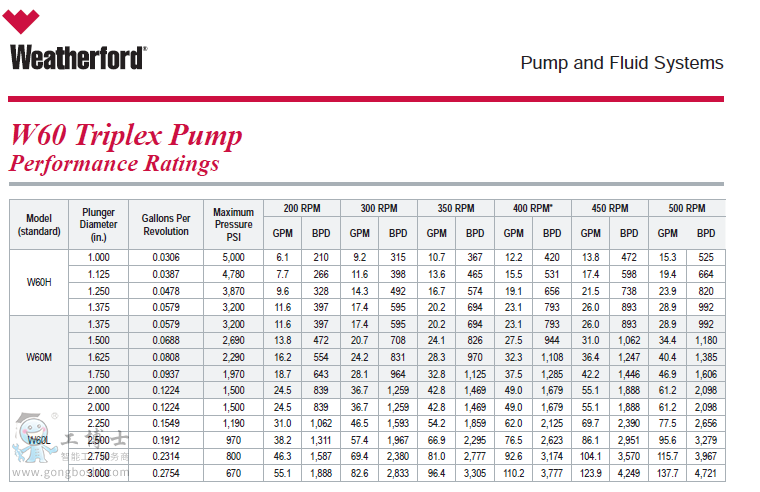

威德福Weatherford W60 三缸工業泵-1
威德福Weatherford W60 三缸工業泵-2
