威德福三缸工業泵 W80H W80M W80L

點擊圖片查看原圖
品牌: 威德福Weatherford
功率: 60KW
行程: 76mm
單價: 面議
所在地: 上海
有效期至: 長期有效
最后更新: 2018-04-05 11:33
瀏覽次數: 335
詢價
店鋪基本資料信息

產品詳細說明
威德福Weatherford三缸工業泵 W80 W80H W80M W80L

Pump Specifications:

Rated (HP, kW) 80 60
Stroke length (in., mm) 3 76
Maximum discharge pressure (PSI, Bar)
W80H 5,000 345
W80M 4,270 294
W80L 2,020 139
Rated rod load (lb, kg) 6,336 2,874
API-674 speed, RPM 400
Maximum speed, RPM 500
Minimum speed, RPM 200
Crankshaft dimensions (in., mm)
Diameter 3.00 76
Length (both sides) 5.12 130
Keyway, width × depth (in., mm) .75 × .38 19 × 10
Oil capacity (gal, l)
Pump 2.0 7.6
Reducer 1.0 3.8
Weight (lb, kg); estimates only
Pump
W80H 1,250 1,572
W80M 1,190 544
W80L 1,150 508
Reducer 350 159
Mechanical efficiency 90%

Flange Connections:
Pump Model                   Discharge Connection Sizes (in., mm)           Suction Connection Sizes (in.,mm)
W80H                                     1.25 (31.8) ANSI 2500 RJ                                  2.5 (63.5) ANSI 300 FF
W80M                                     1.5 (38.1) API 5000 RJ                                      2.5 (63.5) ANSI 150 FF
W80L(flanged)                         2 (50.8) API 2000 RJ                                        3 (76.2) ANSI 150 FF
W80L(threaded)                      2 (50.8) NPT                                                      3 (76.2) NPT

Standard Equipment:
• Cast aluminum-bronze, forged duplex stainless steel,
or forged carbon steel fluid ends
• Aluminum-bronze or duplex stainless steel stuffing boxes
• Various valve designs offered per fluid end style
• Tungsten carbide coated plungers over stainless steel
base or solid ceramic plungers
• Double extended crankshaft
• Multiple plunger packing arrangements offered

Optional Accessories:
• Weatherford bolt on gear reducers (ratios)
– 2.34:1   – 2.77:1   – 3.50:1  – 3.03:1
• Packing lubricators
• Customized plunger packing arrangements
• Complete pump packages

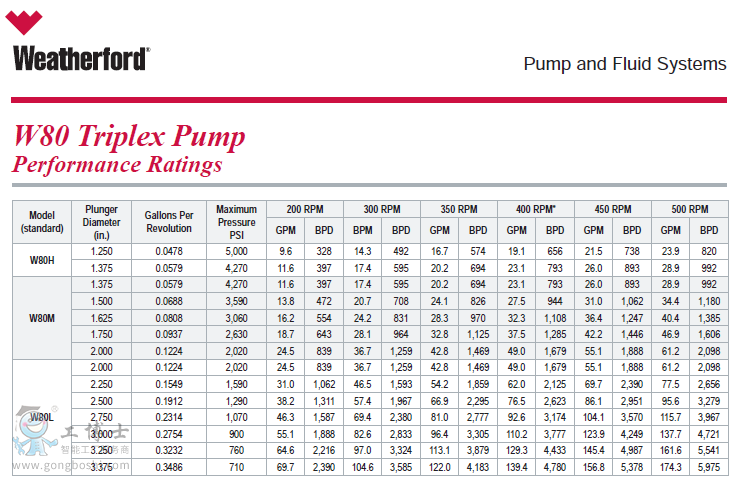

威德福Weatherford W80 三缸工業泵-1

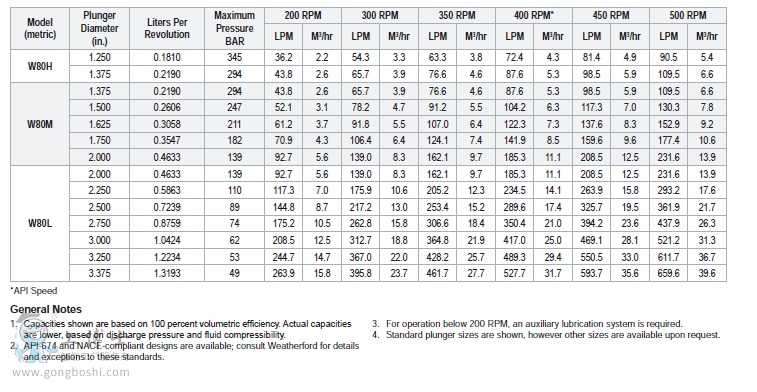

威德福Weatherford W80 三缸工業泵-2
