MG-1000-G Electric Gear-Reduction Drive Provides a reliable, economic solution for a variety of PCP applications,
including heavy to light oil, coalbed methane, and water source wells
Applications
· PCP applications driven by electric or hydraulic motors Features and Benefits
· The small footprint is especially useful for height-restricted areas and aesthetically sensitive environments.
· Standard features include a three-point lifting system for ease of handling.
· The centrifugal braking system provides a resistive torque that is proportional to speed, for a safe release of the backspin energy. The brake shoes automatically engage and retract based on speed, which results in a quick, complete, and controlled fluid dump, enabling production to resume quickly.
· The braking system is enclosed and immersed in synthetic oil to manage the wide range of operating temperatures while lubricating all moving parts for a long service life.

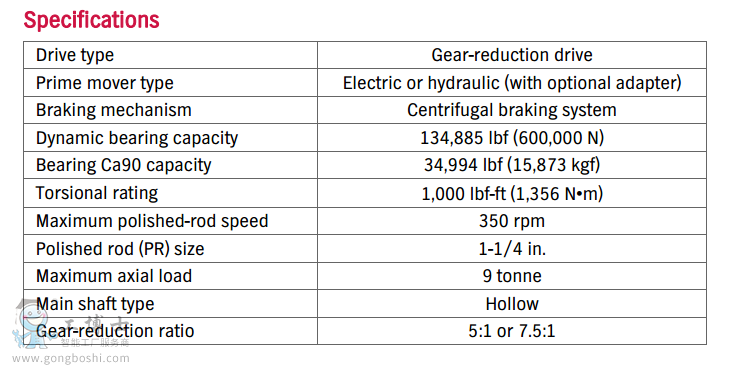

Tool Description
The Weatherford MG-1000-G drive is an electric, gear-driven drive with a torque capacity of 1,000 lbf-ft. It is compatible with Weatherford stuffing boxes and various wellhead connections.
