ELMxxxx型EtherCAT測量終端
***，快速，健壯
ELMxxxx EtherCAT測量終端設計用于生產行業和試驗臺上。它們是模擬測量的正確選擇，在100 ppm（0.01%）及以下的范圍內，***大測量精度（也是***低測量不確定度）非常重要�？捎糜贓L/ES終端的終端段，通過高質量的測量技術，擴展了通用的終端建設工具包：準確、可靠、長期穩定。

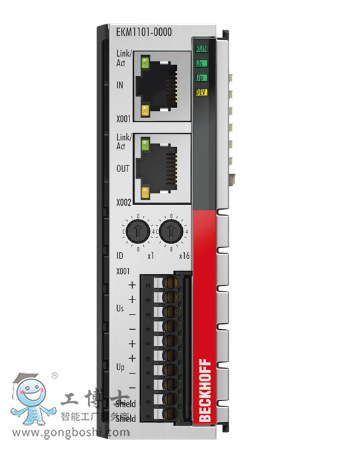

EKM1101
EKM1101 | EtherCAT Coupler with ID switch and diagnostics
Product series:EtherCAT TerminalsCommunication:EtherCATFieldbus connector:RJ45
Learn more
ELM2642-0000
ELM2642-0000 | EtherCAT terminal, 2-channel reed output, multiplexer, 48 V AC/DC, 0.5 A, potential-free, 1 x 4New
Product series:EtherCAT TerminalsTechnology:multiplexerChannels:2Plug:Push-In
Learn more
ELM2644-0000
ELM2644-0000 | 4-channel multiplexer, 1 x 4 reed relays 48 V AC/DC, 0.5 A, potential-free make contactsNew
Product series:EtherCAT TerminalsTechnology:multiplexerChannels:4Plug:Push-In
Learn more
ELM2742-0000
ELM2742-0000 | 2-channel multiplexer, 1 x 4 solid-state relays 48 V AC/DC, 1 A, potential-free make contactsNew
Product series:EtherCAT TerminalsTechnology:multiplexerChannels:2Plug:Push-In
Learn more
ELM2744-0000
ELM2744-0000 | 4-channel multiplexer, 1 x 4 solid-state relays 48 V AC/DC, 1 A, potential-free make contactsNew
Product series:EtherCAT TerminalsTechnology:multiplexerChannels:4Plug:Push-In
Learn more
ELM3002-0000
ELM3002-0000 | 2-channel analog input terminal ±30 V…±20 mV, 24 bit, 20 ksps
Product series:EtherCAT TerminalsTechnology:voltage measurementChannels:2Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3002-0030
ELM3002-0030 | 2-channel analog input terminal ±30 V…±20 mV, 24 bit, 20 ksps, with external calibration certificate
Product series:EtherCAT TerminalsTechnology:voltage measurementChannels:2Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3004-0000
ELM3004-0000 | 4-channel analog input terminal ±30 V…±20 mV, 24 bit, 10 ksps
Product series:EtherCAT TerminalsTechnology:voltage measurementChannels:4Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3004-0030
ELM3004-0030 | 4-channel analog input terminal ±30 V…±20 mV, 24 bit, 10 ksps, with external calibration certificate
Product series:EtherCAT TerminalsTechnology:voltage measurementChannels:4Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3102-0000
ELM3102-0000 | 2-channel analog input terminal -20/0/+4…+20 mA, 24 bit, 20 ksps
Product series:EtherCAT TerminalsTechnology:current measurementChannels:2Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3104-0000
ELM3104-0000 | 4-channel analog input terminal -20/0/+4…+20 mA, 24 bit, 10 ksps
Product series:EtherCAT TerminalsTechnology:current measurementChannels:4Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3142-0000
ELM3142-0000 | 2-channel analog input, ±10…±1.25 V, ±20 mA, 24 bit, 1 ksps
Product series:EtherCAT TerminalsTechnology:voltage or current measurement, configurable for each channelChannels:2Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3144-0000
ELM3144-0000 | 4-channel analog input, ±10…±1.25 V, ±20 mA, 24 bit, 1 ksps
Product series:EtherCAT TerminalsTechnology:voltage or current measurement, configurable for each channelChannels:4Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3146-0000
ELM3146-0000 | 6-channel analog input, ±10…±1.25 V, ±20 mA, 24 bit, 1 ksps
Product series:EtherCAT TerminalsTechnology:voltage or current measurement, configurable for each channelChannels:6Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3148-0000
ELM3148-0000 | 8-channel analog input, ±10…±1.25 V, ±20 mA, 24 bit, 1 ksps
Product series:EtherCAT TerminalsTechnology:voltage or current measurement, configurable for each channelChannels:8Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3344-0000
ELM3344-0000 | EtherCAT Terminal, 4-channel analog input, thermocouple, 24 bit, high-precision, 1 kSpsNew
Product series:EtherCAT TerminalsTechnology:temperature or voltage measurement, configurable for each channelChannels:4Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3344-0003
ELM3344-0003 | EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, Mini-TC universal, high-precision, 1 kSpsNew
Product series:EtherCAT TerminalsTechnology:temperature or voltage measurement, configurable for each channelChannels:4Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3348-0000
ELM3348-0000 | EtherCAT Terminal, 8-channel analog input, temperature, thermocouple, 24 bit, high-precision, 1 kSpsNew
Product series:EtherCAT TerminalsTechnology:temperature or voltage measurement, configurable for each channelChannels:8Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3348-0003
ELM3348-0003 | EtherCAT Terminal, 8-channel analog input, temperature, thermocouple, 24 bit, Mini-TC universal, high-precision, 1 kSpsNew
Product series:EtherCAT TerminalsTechnology:temperature or voltage measurement, configurable for each channelChannels:8Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3502-0000
ELM3502-0000 | 2-channel measuring bridge analysis, full/half/quarter bridge, 24 bit, 20 ksps
Product series:EtherCAT TerminalsTechnology:resistor bridge, strain gaugeChannels:2Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3502-0030
ELM3502-0030 | 2-channel measuring bridge analysis, full/half/quarter bridge, 24 bit, 20 ksps, with external calibration certificate
Product series:EtherCAT TerminalsTechnology:resistor bridge, strain gaugeChannels:2Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3504-0000
ELM3504-0000 | 4-channel measuring bridge analysis, full/half/quarter bridge, 24 bit, 10 ksps
Product series:EtherCAT TerminalsTechnology:resistor bridge, strain gaugeChannels:4Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3504-0030
ELM3504-0030 | 4-channel measuring bridge analysis, full/half/quarter bridge, 24 bit, 10 ksps, with external calibration certificate
Product series:EtherCAT TerminalsTechnology:resistor bridge, strain gaugeChannels:4Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3542-0000
ELM3542-0000 | 2-channel measuring bridge analysis, full/half/quarter bridge, 24 bit, 1 ksps, TEDSNew
Product series:EtherCAT TerminalsTechnology:resistor bridge, strain gaugeChannels:2Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3544-0000
ELM3544-0000 | 4-channel measuring bridge analysis, full/half/quarter bridge, 24 bit, 1 kspsNew
Product series:EtherCAT TerminalsTechnology:resistor bridge, strain gaugeChannels:4Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3602-0000
ELM3602-0000 | 2-channel IEPE analysis, 24 bit, 50 ksps
Product series:EtherCAT TerminalsTechnology:IEPE, voltage measurementChannels:2Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3602-0002
ELM3602-0002 | 2-channel IEPE analysis, 24 bit, 50 ksps, BNC
Product series:EtherCAT TerminalsTechnology:IEPE, voltage measurementChannels:2Signal resolution （analog）：24 bitPlug:BNC
Learn more
ELM3604-0000
ELM3604-0000 | 4-channel IEPE analysis, 24 bit, 20 ksps
Product series:EtherCAT TerminalsTechnology:IEPE, voltage measurementChannels:4Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3604-0002
ELM3604-0002 | 4-channel IEPE analysis, 24 bit, 20 ksps, BNC
Product series:EtherCAT TerminalsTechnology:IEPE, voltage measurementChannels:4Signal resolution （analog）：24 bitPlug:BNC
Learn more
ELM3702-0000
ELM3702-0000 | 2-channel multi-functional input, 24 bit, 10 ksps
Product series:EtherCAT TerminalsTechnology:multi-functionChannels:2Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3702-0101
ELM3702-0101 | EtherCAT Terminal, 2-channel analog input, multi-function, 24 bit, 10 ksps, galvanically isolated, LEMO
New
Product series:EtherCAT TerminalsTechnology:multi-functionChannels:2Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3704-0000
ELM3704-0000 | 4-channel multi-functional input, 24 bit, 10 ksps
Product series:EtherCAT TerminalsTechnology:multi-functionChannels:4Signal resolution （analog）：24 bitPlug:Push-In
Learn more
ELM3704-0001
ELM3704-0001 | 4-channel multi-functional input, 24 bit, 10 ksps, LEMO 1B
Product series:EtherCAT TerminalsTechnology:multi-functionChannels:4Signal resolution （analog）：24 bitPlug:LEMO
Learn more
ELM3704-1001
ELM3704-1001 | EtherCAT Terminal, 4-channel analog input, multi-function with thermocouple adjustment, 24 bit, 10 kspsNew
Product series:EtherCAT TerminalsTechnology:multi-function （only thermocouple and voltage aligned）Channels:4Signal resolution （analog）：24 bitPlug:LEMO
Learn more
ELM9012
ELM9012 | Bus end cover for ELMxxxx
Product series:EtherCAT TerminalsFunction:cover for power and E-bus contactsTechnology:bus end cover
Learn more
ELM9410
ELM9410 | Power supply terminal for refreshing the E-bus, with diagnostics
Product series:EtherCAT TerminalsFunction:Power supplyNominal voltage:5 V DCfurther features:electrically isolated, diagnostics
