GEMS捷邁 FS-200流量開關系列  FS-200資料下載   FS-200說明書.pdf
GEMS捷邁FS-200梭形流量開關部件號
FS-200-27051，FS-200-27052，FS-200-27053，FS-200-27054，FS-200-27055，FS-200-27056，FS-200-27057，FS-200-27058，FS-200-27059，FS-20027060，FS-200-27061，FS-200-27062，FS-200-27063，FS-200-27064，FS-200-27065，FS-200-27066，FS-200-27067，FS-200-27068，FS-200-27069，FS-200-27070，FS-200-27071，FS-200-27072，FS-200-27073，FS-200-27074，FS-200-27075，FS-200-27076，FS-200-27077，FS-200-27078，FS-200-27079，FS-200-27080，FS-200-27081，FS-200-27082，FS-200-27083，FS-200-27084，FS-200-27085，FS-200-27086，FS-200-27087，FS-200-27088，FS-200-27089，FS-200-27090，FS-200-27091，FS-200-27092，FS-200-27093，FS-200-27094，FS-200-27095，FS-200-27096，FS-200-27097，FS-200-27099，FS-200-27099，FS-200-27100，FS-200-27101，FS-200-27102，FS-200-27103，FS-200-27104，FS-200-27105，FS-200-27106，FS-200-27107，FS-200-27108，FS-200-27109，FS-200-27110，FS-200-27111，FS-200-27112，FS-200-27113，FS-200-27114，FS-200-27115，FS-200-27116

GEMS流量,GEMS流量,GEMS流量開關,流量變送器

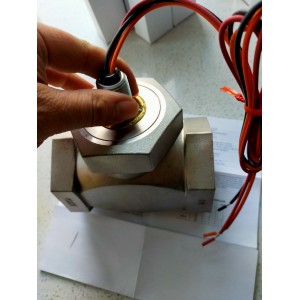

FS-200通用型直流通式流量開關

●流量設定:固定式:0.5GPM到100.0GPM;可調式:1.0GPM到15.0GPM

●接口:1″NPT-2″NPT●基本構造材質:青銅或不銹鋼

●設置類型:固定式或可調式

   接液材質

外殼 FS-200:青銅或316不銹鋼

FS-200可調型:青銅

梭 特氟隆

蓋 青銅或不銹鋼

彈簧 316不銹鋼

其它接液部件 Viton®(氟化橡膠),陶瓷

 FS-200的環(huán)境參數(shù)

工作壓力 耐壓:400PSIG@100℉(37.8℃)

破裂壓:800PSIG@100℉(37.8℃)

工作溫度 FS-200:-20℉～+300℉(-29℃～+148.9℃)

FS-200可調型:-20℉～+200℉(-29℃～+93.3℃)

性能參數(shù)

開關 SPDT,20VA

重復性 1%Max.

設定點精度 ±10%

設定點偏差 15%Max.

 FS-200的物理參數(shù)

電氣連接 18AWG,24″長,聚合體引線
