產品特點（Product Features):

1、額定功率范圍：50W-3000W 1、Power Range:50W-3000W

2、工作電壓范圍：≤1.2KV 2、Voltage Range:≤1200V

3、額定阻值范圍：1Ω-10KΩ 3、Resistance Range:1Ω-10KΩ

4、耐壓范圍：AC3KV 50HZ/5s 4、Dielectric Strength:AC3KV 50Hz/5s

5、IP等級：IP00 5、IP Protection:IP00

6、優勢：可做高電壓等級 6、Advantage:High Voltage Application

7、劣勢：抗震性較差 7、Disadvantage:Less Vibration

產品介紹（Product Profile):

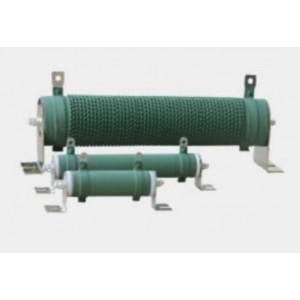

RPWL 系列波紋電阻器采用的是在陶瓷管作為骨架，在陶 瓷上引出兩個端子，在陶瓷管表面上均勻纏繞上波紋狀合金 電阻絲，表面上涂有高溫絕緣涂料。陶瓷管作為電阻絲骨架 的同時，還具有散熱功效。本品適用于模擬負荷試驗、設備 放電、自動控制、變頻器能耗制動等。

RPWL By series of corrugated resistor is in ceramic tube as a skeleton, raises the two terminals in the ceramic, the ceramic tube corrugated alloy resistance wire is uniformly wound on the surface, the surface is coated with high temperature insulation coating. Ceramic tube as the resistance wire skeleton and also with heat radiation function. This product is applicable to simulate the load test, the equipment discharge, automatic control, inverter power brake.

產品識別碼（Product Identification Code)

產品尺寸表（Product Size):

選型表(Selection Table):
