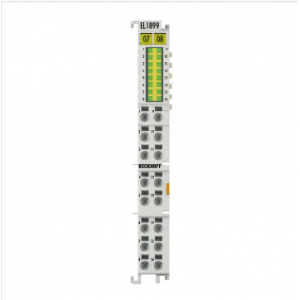

EL1899 | EtherCAT Terminal, 16-channel digital inp

點(diǎn)擊圖片查看原圖

店鋪基本資料信息

產(chǎn)品詳細(xì)說(shuō)明

Technical data	EL1899
Connection technology	1-wire
Specification	ground switching “0”: 18…30 V DC, “1”: 0…7 V DC, typ. 3 mA input current
Number of inputs	16
Nominal voltage	24 V DC (-15 %/+20 %)
“0” signal voltage	18…30 V
“1” signal voltage	0…7 V
Input current	typ. 3 mA
Input filter	typ. 10 µs
Distributed clocks	–
Current consumption power contacts	typ. 35 mA
Current consumption E-bus	typ. 110 mA
Electrical isolation	500 V (E-bus/field potential)
Configuration	no address or configuration setting
Weight	approx. 55 g
Operating/storage temperature	-25…+60 °C/-40…+85 °C
Relative humidity	95 %, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable (see documentation)
Approvals/markings	CE

Housing data	EL-12-16pin
Design form	HD (High Density) housing with signal LEDs
Material	polycarbonate
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxx series
Wiring	solid conductors (e): direct plug-in technique; fine-stranded conductors (f) and ferrule (a): spring actuation by screwdriver
Connection cross-section	s: 0.08…1.5 mm², st: 0.25…1.5 mm², f*: 0.14…0.75 mm²
Connection cross-section AWG	s: AWG 28…16, st: AWG 22…16, f*: AWG 26…19
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
