CMP非鎧防爆格蘭（A2F系列）

點擊圖片查看原圖

店鋪基本資料信息

產品詳細說明

CMP-A2F系列防爆電纜密封接頭(Exe、Exd)

CMP防爆格蘭代理商：上海頤品自動化科技有限公司

關鍵詞：CMP防爆格蘭，CMP防爆葛蘭，CMP防爆填料函，CMP防爆密封接頭

CMP非鎧防爆格蘭，CMP鎧裝防爆格蘭，CMP防爆變徑，CMP防爆呼吸閥堵頭

A2F Series of explosion-protected CMP cable gland

Cable Gland Material：Nickel-plated brass；Stainless Steel 316L

CMP - The Cable Gland ａnd Connector Specialists

CMP design & manufacture cable glands & cable connectors for industrial,
marine ａnd explosive atmospheres installations

A2F Globally Approved, Explosive Atmosphere Cable Gland

For all types of Unarmoured & Braid Armour Cables

• Displacement type flameproof seal

• Designed to prevent Coldflow

• No external cable clamping required

• Deluge protected

• -60?C to +130?C (standard), -20?C to 200?C (ThermEx option page 91)

• Globally marked, IECEx, ATEX & CSA

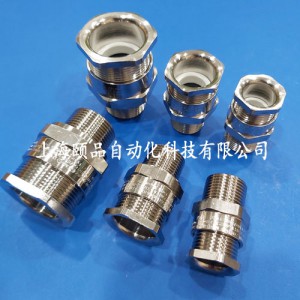

CMP非鎧防爆格蘭頭（A2F-黃銅鍍鎳）

CMP非鎧防爆格蘭頭（A2F-不銹鋼316L）
CMP防爆格蘭代理商【上海頤品自動化科技有限公司】

CMP選型資料：CMP-A2F系列防爆電纜密封接頭(Exe、Exd)

CMP Order Reference	OD Max.	ID Max.	Male Thread	M制訂貨號	PVC護套	上海頤品
A2F 20S/16	3.20	8.70	M20	20S16A2F1RA	PVC04	EPIN
A2F 20S	6.10	11.70	M20	20SA2F1RA	PVC04	EPIN
A2F 20	6.50	14.00	M20	20A2F1RA	PVC05	EPIN
A2F 25	11.10	20.00	M25	25 A2F2RA	PVC09	EPIN
A2F 32	17.00	26.30	M32	32A2F3RA	PVC10	EPIN
A2F 40	23.50	32.20	M40	40A2F4RA	PVC13	EPIN
A2F 50S	31.00	38.20	M50	50SA2F5RA	PVC14	EPIN
A2F 50	35.60	44.10	M50	50A2F6RA	PVC17	EPIN
A2F 63S	41.50	50.00	M63	63SA2F7RA	PVC20	EPIN
A2F 63	47.20	56.00	M63	63A2F8RA	PVC22	EPIN
A2F 75S	54.00	62.00	M75	75SA2F9RA	PVC24	EPIN
A2F 75	61.10	68.00	M75	75 A2F10RA	PVC26	EPIN
A2F 90	66.60	80.00	M90	90A2F11RA	PVC31	EPIN
A2F 100	76.00	91.00	M100	100A2F12RA	PVC32	EPIN
A2F 115	86.00	98.00	M115	115 A2F13RA	PVC34	EPIN
A2F 130	97.00	115.00	M130	130A2F14RA	PVC35
