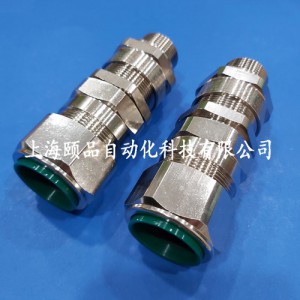

英國CMP鎧裝防爆格蘭（E1FU系列） CMP E1FU Cable gland
上海頤品自動化-CMP防爆格蘭（CMP Cable Gland）
Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II
CMP防爆格蘭代理商：上海頤品自動化科技有限公司
關鍵詞：CMP防爆格蘭，CMP防爆變徑，CMP防爆堵頭，CMP防爆呼吸閥
CMP防爆格蘭等產品規格書及相關證書-請咨詢上海頤品自動化科技有限公司
E1FU | Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Cable Gland
For all types of Armoured cables
Globally Approved, Explosive Atmosphere Cable Gland
•
• Direct & remote installation
• Displacement type flameproof inner seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• Designed to prevent Coldflow, see CMP Technical document TS001 (available upon request)
• -60°C to +130°C
• Globally marked, IECEx, ATEX & cCSAus
• Superior EMC performance
Note: † Grooved Cone (X) is predominantly used for Wire Braid (e.g. GSWB, TCWB), Steel Tape Armour (STA, DSTA) ａnd Aluminium Strip Armour (ASA) but is also suitable for Single Wire Armour (SWA), Aluminium Wire Armour (AWA) ａnd Pliable Wire Armour (PWA) if the range is outside that of the Stepped Cone (W). Note: Grooved Cone (X) dimensions shown in the Cable Gland Selection Table below are for a double wire strand of braid armour cables. Tapes can also be doubled over. For cables that have only a single layer of armour such as SWA the clamping range should be used as shown in the table below. Stepped (W) Cone is suitable for Single Wire Armour (SWA), or Aluminium Wire Armour (AWA) cables. For under / oversized armour wires click here
| Cable Gland Size | Available Entry Threads ＇C＇ (Alternate Metric Thread Lengths Available) | Cable Bedding Diameter ＇A＇ |
Overall Cable Diameter ＇B＇ |
Armour Range | Across Flats ＇D＇ |
Across Corners ＇D＇ |
Protrusion Length ＇F＇ |
Combined Ordering Reference (*Brass Metric) |
Shroud | Cable Gland Weight (Kgs) |
|||||||||||
| Standard | Option | Grooved Cone (X) |
Stepped Cone (W) | ||||||||||||||||||
| Metric | Thread Length (Metric) ＇E＇ | NPT | Thread Length (NPT) ＇E＇ |
NPT | Min | Max | Min | Max | Min | Max | Min | Max | Max | Max | Size | Type | Ordering Suffix |
||||
| 20S16 | M20 | 15.0 | ½" | 19.9 | ¾" | 3.1 | 8.6 | 6.1 | 13.1 | 0.3 | 1.0 | 0.8 | 1.25 | 24.0 | 26.4 | 72.5 | 20S16 | E1FU | 1RA | PVC04 | 0.16 |
| 20S | M20 | 15.0 | ½" | 19.9 | ¾" | 6.1 | 11.6 | 9.5 | 15.9 | 0.3 | 1.0 | 0.8 | 1.25 | 24.0 | 26.4 | 70.0 | 20S | E1FU | 1RA | PVC04 | 0.15 |
| 20 | M20 | 15.0 | ½" | 19.9 | ¾" | 6.5 | 13.9 | 12.5 | 20.9 | 0.4 | 1.0 | 0.8 | 1.25 | 30.5 | 33.6 | 73.0 | 20 | E1FU | 1RA | PVC06 | 0.21 |
| 25S | M25 | 15.0 | ¾" | 20.2 | 1" | 11.1 | 19.9 | 14.0 | 22.0 | 0.4 | 1.2 | 1.25 | 1.6 | 37.5 | 41.3 | 89.0 | 25S | E1FU | 1RA | PVC09 | 0.33 |
| 25 | M25 | 15.0 | ¾" | 20.2 | 1" | 11.1 | 19.9 | 18.2 | 26.2 | 0.4 | 1.2 | 1.25 | 1.6 | 37.5 | 41.3 | 89.0 | 25 | E1FU | 1RA | PVC09 | 0.33 |
| 32 | M32 | 15.0 | 1" | 25.0 | 1 ¼" | 17.0 | 26.2 | 23.7 | 33.9 | 0.4 | 1.2 | 1.6 | 2.0 | 46.0 | 50.6 | 86.0 | 32 | E1FU | 1RA | PVC11 | 0.43 |
| 40 | M40 | 15.0 | 1 ¼" | 25.6 | 1 ½" | 22.0 | 32.1 | 27.9 | 40.4 | 0.4 | 1.6 | 1.6 | 2.0 | 55.0 | 60.5 | 90.0 | 40 | E1FU | 1RA | PVC15 | 0.62 |
| 50S | M50 | 15.0 | 1 ½" | 26.1 | 2" | 29.5 | 38.1 | 35.2 | 46.7 | 0.4 | 1.6 | 2.0 | 2.5 | 60.0 | 66.0 | 91.0 | 50S | E1FU | 1RA | PVC18 | 0.75 |
| 50 | M50 | 15.0 | 2" | 26.9 | 2 ½" | 35.6 | 44.0 | 40.4 | 53.0 | 0.6 | 1.6 | 2.0 | 2.5 | 70.1 | 77.1 | 95.0 | 50 | E1FU | 1RA | PVC21 | 0.95 |
| 63S | M63 | 15.0 | 2" | 26.9 | 2 ½" | 40.1 | 49.9 | 45.6 | 59.4 | 0.6 | 1.6 | 2.0 | 2.5 | 75.0 | 82.5 | 102.0 | 63S | E1FU | 1RA | PVC23 | 1.34 |
| 63 | M63 | 15.0 | 2 ½" | 39.9 | 3" | 47.2 | 55.9 | 54.6 | 65.8 | 0.6 | 1.6 | 2.0 | 2.5 | 80.0 | 88.0 | 104.0 | 63 | E1FU | 1RA | PVC25 | 1.34 |
| 75S | M75 | 15.0 | 2 ½" | 39.9 | 3" | 52.8 | 61.9 | 59.0 | 72.0 | 0.6 | 1.6 | 2.0 | 2.5 | 90.0 | 99.0 | 115.0 | 75S | E1FU | 1RA | PVC28 | 2.11 |
| 75 | M75 | 15.0 | 3" | 41.5 | 3 ½" | 59.1 | 67.9 | 66.7 | 78.4 | 0.6 | 1.6 | 2.5 | 3.0 | 100.0 | 110.0 | 117.0 | 75 | E1FU | 1RA | PVC30 | 2.42 |
| 90 | M90 | 24.0 | 3 ½" | 42.8 | 4" | 66.6 | 78.6 | 76.2 | 90.3 | 0.8 | 1.6 | 3.15 | 4.0 | 114.3 | 125.4 | 147.0 | 90 | E1FU | 1RA | PVC32 | 4.21 |
| 100 | M100 | 24.0 | 3 ½" | 42.8 | 4" | 76.0 | 90.9 | 86.1 | 101.4 | 0.8 | 1.6 | 3.15 | 4.0 | 123.0 | 135.3 | 140.0 | 100 | E1FU | 1RA | LSF33 | 4.45 |
| 115 | M115 | 24.0 | 4" | 44.0 | 5" | 86.0 | 97.9 | 101.5 | 110.2 | 0.8 | 1.6 | 3.15 | 4.0 | 133.4 | 146.7 | 162.0 | 115 | E1FU | 1RA | LSF34 | 6.19 |
| 130 | M130 | 24.0 | 5" | 46.8 | - | 97.0 | 114.9 | 110.2 | 123.2 | 0.8 | 1.6 | 3.15 | 4.0 | 152.4 | 167.6 | 174.0 | 130 | E1FU | 1RA | LSF35 | 8.34 |
