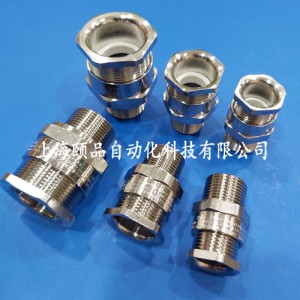

CMP不銹鋼非鎧防爆格蘭（A2F-SS316系列）
點擊圖片查看原圖
品牌： CMP不銹鋼非鎧防爆格蘭
CMP防爆格蘭： A2F系列
單價： 398.60元/只
所在地： 上海
有效期至： 長期有效
最后更新： 2024-11-19 09:11
瀏覽次數： 509
詢價
店鋪基本資料信息

 產品詳細說明

CMP防爆格蘭（A2F系列）CMP A2F Cable Gland
Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II
CMP防爆格蘭代理商：上海頤品自動化科技有限公司
關鍵詞：CMP防爆格蘭，CMP防爆變徑，CMP防爆堵頭，CMP防爆呼吸閥
CMP防爆格蘭等產品規格書及相關證書-請咨詢上海頤品自動化科技有限公司

A2F Cable Gland，explosive atmosphere single seal globally approved gland
Globally Approved, Explosive Atmosphere Cable Gland
• Displacement type flameproof seal
• Deluge protected
• -60°C to +130°C (standard), -20°C to 200°C (ThermEx option )
• Globally marked, IECEx, ATEX & CSA
• Class I Zone 1, Class I Division 2 BCD (Canada Only)
For all types of Unarmoured & Braid Armour Cables

Design Specification

BS 6121:Part 1:1989, IEC 62444, EN 62444

Mechanical Classifications*

Impact = Level 8, Retention = Class B

Enclosure Protection

IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only

ATEX Certificate

SIRA13ATEX1068X, SIRA13ATEX4074X

Code of Protection

II 2G, II 1D Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da
II 3G Ex nR IIC Gc I M2 Ex d I Mb, Ex e I Mb

Compliance Standards

EN 60079-0,1,7,15,31

IECEx Certificate

IECEx SIR 13.0023X, IECEx SIM 14.0006

Code of Protection

Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex d I Mb, Ex e I Mb

Compliance Standards

IEC 60079-0,1,7,15,31

CSA Certificate

1211841

Code of Protection

Class I, Div 2 Groups B, C, D; Class II, Div 2 Groups E, F, G; Class III, Div 2; Type 4X: Oil Resistant II: Ex d IIC, Ex e II, Ex nR II

Compliance Standards

C22.2 No 0,0.4, 94, 174, CAN/CSA-E60079-0,1,7,15

EAC Certificate

C-GB.AA87.B.00487

KCC Certificate

13_GA4BO_0748X, 13_GA4BO_0749X, 13_GA4BO_0750X, 14_GA4BO_0251X

NEPSI Certificate

GYJ13.1140X , GYJ13.1282X

INMETRO Certificate

TÜV 12.0619X

CCOE / PESO (India) Certificate

P333688

RETIE Certificate

03866

Marine Approvals

LRS: 01/00172 (E3), DNV: TAE00000Y, ABS: 14-LD234401A-4-PDA, BV: 43180/A1BV

Ingress Protection Rating **

IP66, IP67 & IP68

Deluge Protection Compliance

DTS01 : 91

Cable Gland Material

Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium

Seal Material

CMP SOLO LSF Halogen Free Thermoset Elastomer

Cable Type

Unarmoured & Braided when terminated inside enclosure

Sealing Technique

CMP Unique Displacement Seal Concept

Sealing Area(s)

Cable Outer Sheath

Optional Accessories

Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs

Optional Installation Tools

Spanners, Armour Former Tool
PRODUCT SELECTION TABLE
Cable
Gland Size		 Available Entry
Threads ＇C＇
(Alternate Metric Thread
Lengths Available)		 Overall
Cable
Diameter
＇A＇		 Across
Flats
＇D＇		 Across
Corners
＇D＇		 Protrusion
Length ＇F＇		 Combined Ordering Reference
(*Brass Metric)		 Shroud Cable
Gland
Weight
(kgs)
Standard Option
Metric Thread
Length
(Metric) ＇E＇		 NPT Thread Length
(NPT) ＇E＇		 NPT Min Max Max Max Size Type Ordering
Suffix
16 M16 15.0 - - - 3.2 8.7 24.0 26.4 29.9 16 A2F 1RA PVC04 0.06
20S16 M20 15.0 ½" 19.9 ¾" 3.2 8.7 24.0 26.4 26.0 20S16 A2F 1RA PVC04 0.07
20S M20 15.0 ½" 19.9 ¾" 6.1 11.7 24.0 26.4 26.0 20S A2F 1RA PVC04 0.06
20 M20 15.0 ½" 19.9 ¾" 6.5 14.0 27.0 29.7 27.7 20 A2F 1RA PVC05 0.07
25 M25 15.0 ¾" 20.2 1" 11.1 20.0 36.0 39.6 35.5 25 A2F 1RA PVC09 0.13
32 M32 15.0 1" 25.0 1 ¼" 17.0 26.3 41.0 45.1 35.1 32 A2F 1RA PVC10 0.15
40 M40 15.0 1 ¼" 25.6 1 ½" 23.5 32.2 50.0 55.0 35.1 40 A2F 1RA PVC13 0.20
50S M50 15.0 1 ½" 26.1 2" 31.0 38.2 55.0 60.5 33.0 50S A2F 1RA PVC15 0.26
50 M50 15.0 2" 26.9 2 ½" 35.6 44.0 60.0 66.0 37.3 50 A2F 1RA PVC18 0.27
63S M63 15.0 2" 26.9 2 ½" 41.5 49.9 70.5 77.6 33.5 63S A2F 1RA PVC21 0.43
63 M63 15.0 2 ½" 39.9 3" 47.2 55.9 75.0 82.5 36.2 63 A2F 1RA PVC23 0.40
75S M75 15.0 2 ½" 39.9 3" 54.0 61.9 84.0 92.4 34.1 75S A2F 1RA PVC24 0.52
75 M75 15.0 3" 41.5 3 ½" 61.1 67.9 84.0 92.4 40.9 75 A2F 1RA PVC24 0.50
90 M90 24.0 3 ½" 42.8 4" 66.6 79.9 108.0 118.8 60.3 90 A2F 1RA PVC31 1.60
100 M100 24.0 3 ½" 42.8 4" 76.0 91.0 123.0 135.3 57.2 100 A2F 1RA - 1.78
115 M115 24.0 4" 44.0 5" 86.0 97.9 133.4 146.7 67.3 115 A2F 1RA - 2.67
130 M130 24.0 5" 46.8 - 97.0 114.9 152.4 167.6 74.7 130 A2F 1RA - 3.80
Dimensions are displayed in millimetres unless otherwise stated
