德國REIKU機器人管線包防撞塊/防撞球（Conduit Protector）
REIKU PAPRB Conduit Protector / REIKU PADPB Rotary Protector / Cable Tie Protectors
REIKU代理商：上海頤品自動化科技有限公司--VAKEM for Dual Conduit Run
關鍵詞：REIKU尼龍軟管，REIKU機器人尼龍軟管，德國REIKU-PA12尼龍軟管
REIKU尼龍軟管接頭，REIKU尼龍軟管固定座，REIKU防撞塊，REIKU星型分線頭
REIKU尼龍軟管，REIKU編織網(wǎng)管，REIKU機器人軟管，REIKU管夾支架，
REIKU防撞塊，REIKU尼龍軟管接頭，REIKU尼龍固定座，REIKU尼龍軟管
REIKU法蘭盤，REIKU分線頭，REIKU中間內夾，REIKU直通接頭和內夾

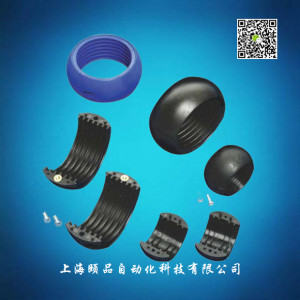

REIKU Conduit Protectors / Abrasion Sleeves are primarily used to reduce the effects of impact, and mechanical stress from damaging or cutting the REIKU conduit. Protectors can also be used to hold a Cablestar grommet, splice two lengths of conduit together, create a ball joint assembly, conjoin two separate conduits runs together and are used as the pulling point at the base of a spring retraction system.
PAPRB Conduit Protector
REIKU PAPRB Protector is a multiple ribbed protector that “firmly” locks into 6 of the grooves on the REIKU corrugated conduit.
The PAPRB style protector can be used to splice 2 pieces of same sized conduit together.
It can be used at at termination point to hold a Cablestar/grommet.
It can be used in creating a ball joint assembly
REIKU PAPRB Protector
| Part No.防撞塊 |
NW |
Quantity |
| PAPRB-23 F/G |
23 |
25 |
| PAPRB-29 F/G |
29 |
25 |
| PAPRB-36 F/G |
36 |
10 |
| PAPRB-42 |
42 |
10 |
| PAPRB-48 F/G |
48 |
10 |
| PAPRB-52 |
52 |
10 |
| PAPRB-52BL* |
52 |
10 |
| PAPRB-68 |
68 |
10 |
| PAPRB-70 |
70 |
10 |
| PARB-70BL* |
70 |
10 |
| PAPRB-90 |
90 |
10 |
PADPB Rotary Protector
REIKU PADPB Protector is designed to be used to protect the conduit ONLY. This style of protector is known as a “Rotary Protector” as it has only one single raised rib in the center so that it can rotate freely on the conduit.
| Part No. |
NW |
Quantity |
| PADPB-36 |
36 |
10 |
| PADPB-52 |
52 |
10 |
| PADPB-70 |
52 |
10 |
Cable Tie Protectors
REIKU Cable Tie Protectors allow for continuous removal and reinstallation using fitted protectors adhered with cable ties instead of screws.
| Part No. |
NW |
Quantity |
| PAPKB-17 |
17 |
25 |
| PAPKB-29 |
29 |
25 |
| PAPKB-36 |
36 |
10 |
VAKEM for Dual Conduit Run
The VAKEM Plate is used to conjoin two protectors together.
| Part No. |
NW |
Quantity |
| VAKEM |
n/a |
1 |
