REIKU機器人管線包彈簧支架（Spring Retraction Components）
點擊圖片查看原圖
品牌： REIKU機器人管線包彈簧支架
REIKU彈簧支架： Spring Retraction
單價： 298.60元/只
所在地： 上海
有效期至： 長期有效
最后更新： 2024-11-19 09:11
瀏覽次數： 531
詢價
店鋪基本資料信息

 產品詳細說明
德國REIKU機器人管線包彈簧支架（Spring Retraction Components）
REIKU Spring Retraction Components
REIKU代理商：上海頤品自動化科技有限公司
關鍵詞：REIKU尼龍軟管，REIKU機器人尼龍軟管，德國REIKU-PA12尼龍軟管
REIKU尼龍軟管接頭，REIKU尼龍軟管固定座，REIKU防撞塊，REIKU星型分線頭
REIKU尼龍軟管，REIKU編織網管，REIKU機器人軟管，REIKU管夾支架，
REIKU防撞塊，REIKU尼龍軟管接頭，REIKU尼龍固定座，REIKU尼龍軟管
REIKU法蘭盤，REIKU分線頭，REIKU中間內夾，REIKU直通接頭和內夾

REIKU offers a multitude of spring retraction components in order to control the location of the conduit. In high dynamic Robotics applications it is imperative that the conduit be long enough to service all of the Robots’ moves, having a REIKU spring retraction system will keep the service loop of conduit in a safe area behind the Robot when not required.

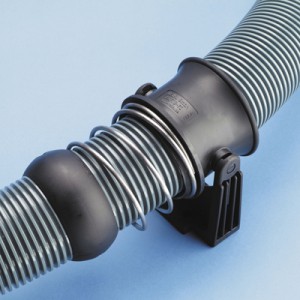

All of the REIKU Spring Holders act like a “halo” allowing the conduit to pass through them as the conduit moves back and forth to service the movements of the Robot. At the rear of the Spring Holders there is a groove where the spring is attached and then a PAPRB style of REIKU Protector is attached to the conduit behind the spring. When the Robot extends to positions that require more conduit, it pulls the conduit from a “safe area” behind the Robot. When the conduit is pulled the Protector which is locked onto the corrugations of the conduit engages on the rear of the spring creating a load and once the Robot returns to a position where this additional length of conduit is not required the conduit returns back to the rear of the Robot.


PAFHB / POFHB Style Spring Holder

    •
This our most widely used version of a spring holder which is held in place on with a Gripping Clamp. This style of spring holder “guides” the conduit through the spring holder on a level trajectory moving the conduit back and forth laterally on a fixed horizontal plane.
Part No. Description Quantity
PAFHB-23/29 Spring Holder for use with 17, 23 & 29 mm conduits. Used with PASSB-29K Gripping Clamp. 10
POFHB-36/36 Spring Holder for use with 29 & 36 mm conduits. Used with PASSB-36S or PASSB-36K Gripping Clamp. 10
PAFHB-70 Spring Holder for use with 52 & 70 mm conduits. Used with PASSB-70M or PASSB-70K Gripping Clamp. 10

PAFTB Style Spring Holder

    •
This version of spring holder is held in place by a Rotary Fork which has mounting holes located on each side as indicated by the red arrows in the picture above. The PAFTB spring holder has round locking pins that seat inside the Rotary Fork and this version of spring holder is now able to pivot on these pins and move up and down in a see-saw type of motion.

Part No. Quantity
PAFTB-32 10
PAFTB-70 10

PAFKB Globe Spring Holder

    •
This “Globe” style of is also held in position by a Gripping Clamp but this Globe style have spring holder has a rounded profile so that it is able to move +/- 12° inside the clamp allowing the conduit to pass through the halo at various different angles.
Part No. Quantity
PAFKB-52 10
PAFKB-70 10

Springs

    •
REIKU Springs provided guided yet flexibility mobility control for retraction components.

Part No.DescriptionSpring Length



DFST-36NEW Spring for use with 29 & 36mm conduits. Used with PO FHB-36/36 Spring Holder 36”
DFST-5270 Conical Spring for use with 52mm conduit only. Used with any 70mm Spring Holder. 30”
DFST-30 Spring for use with 70mm conduit only. Used with any 70mm Spring Holder 30”
DFST-237695 Spring for use with 70mm conduit only. Used with any 70mm Spring Holder 46”
