研華超緊湊型無風扇嵌入式工控機ARK-10
點擊圖片查看原圖
品牌： 研華
產品名稱： 嵌入式工控機
單價： 面議
所在地： 北京
有效期至： 長期有效
最后更新： 2023-09-15 09:35
瀏覽次數： 183
詢價
店鋪基本資料信息

 產品詳細說明

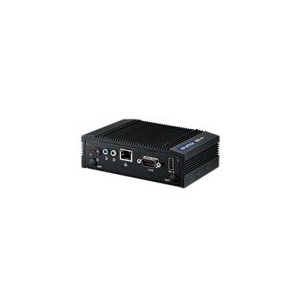

研華超緊湊型無風扇嵌入式工控機ARK-10

  Intel Atom J1900 四核SoC，2 x GbE和2 x COM無風扇嵌入式工控機
 %E7%A0%94%E5%8D%8E%E8%B6%85%E7%B4%A7%E5%87%91%E5%9E%8B%E6%97%A0%E9%A3%8E%E6%89%87%E5%B5%8C%E5%85%A5%E5%BC%8F%E5%B7%A5%E6%8E%A7%E6%9C%BAARK-10[1]
  • ntel® ATOM™J1900四核2.0GHz SoC
  • 內存2G DDR3L，硬盤500G 2.5" 24 x 7 SATA HDD
  • 2 x GbE用于多種網絡傳輸
  • 2 x RS-232/422/485
  • 1 x 全尺寸MiniPCIe擴展槽（WLAN或WWAN模塊）
  • 1 x 半尺寸MiniPCIe擴展槽（mSATA）
  • 可選VESA、DIN Rail、壁掛等安裝方式
  • 鎖固型DC jack電源輸入
  • 支持SUSIAccess及其他內嵌APIs

Intel Atom J1900 四核SoC，2 x GbE和2 x COM無風扇嵌入式工控機

規格


Part Number
  • 相關訊息

Processor
  • CPU
  • Core Number
  • Frequency
  • L2 Cache
  • BIOS
  • Intel Celeron Processor J1900 Quad Core SoC
  • 4
  • 2.0 GHz (Up to 2.41 GHz w/ burst frequency enabled)
  • 2 MB
  • AMI EFI 64 Mbit (Default BIOS is supported for 64-bit OS installation, BIOS for 32-bit OS is supported by project)

Memory
  • Technology
  • Socket
  • DDR3 1333MHz
  • 1 x 204-pin SO-DIMM, 2 GB Memory Built In

Graphics
  • Chipset
  • Graphic Engine
  • VGA
  • Intel® Atom SoC integrated
  • DirectX* 11.1, OGL 3.0, OCL 1.1, OGL ES 2.0 support Encode: H264, MPEG2/4, VC1, WMV9 Decode: H264, MPEG2
  • 1 x VGA, support up to 1920 x 1200 at 60Hz

Audio
  • Main System
  • ALC-888S, High Definition Audio. Line-out & Line-in

Ethernet
  • LAN1
  • LAN2
  • 10/100/1000 Mbps Intel i210 GbE, support Wake On Lan
  • 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN

I/O Interface
  • Serial Port
  • USB Interface
  • 2 x RS-232/422/485 (BIOS selectable)
  • 2 x USB 2.0 & 1 x USB3.0

Other
  • Watchdog Timer
  • 255 levels timer interval, setup by software

Expansion
  • Mini PCIe
  • 1 x Full-size Mini PCIe, support WLAN or WWAN module; 1 x Half-size Mini PCIe, support mSATA module

Storage
  • 2.5" Drive Bay
  • mSATA
  • 1 x 500GB 2.5" 24x7 SATA HDD Built In
  • Leverage MiniPCIe #2 slot (Suggest to assembly by CTOS or T-Part due to complex installation)

Software Support
  • Microsoft Windows
  • Linux
  • WES7, Windows 7, WE8S, Windows 8 (32-bit support by project)
  • Support (by Project)

Power
  • Input Voltage
  • Power Adaptor
  • 12 VDC
  • AC to DC, DC12 V/3 A, 36 W with threaded design

Mechanical
  • Construction
  • Mounting
  • Dimensions
  • Aluminum housing
  • VESA/DIN Rail/Wall Mounting Kits (Optional)
  • 133.8 x 43.1 x 94.2 mm (5.27" x 1.7" x 3.71")

Environment
  • Operating Temperature
  • Storage Temperature
  • Relative Humidity
  • Vibration during Operation
  • Shock During Operation
  • 0 ~ 50° C with 0.7m/s air flow
  • -40 ~ 85° C (-40 ~ 185° F)
  • 95% @ 40° C (non-condensing)
  • 0.5Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
  • 10G, IEC 60068-2-27, half sine, 11 ms duration

Regulation
  • EMC
  • Safety
  • CE/FCC Class A, CCC, BSMI
  • UL, CCC, BSMI, CB
