產品名稱：ABB CA5-10 A600 Q300繼電器接觸器常閉觸點

產品型號：CA5-10 A600 Q300

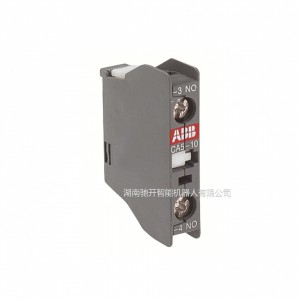

CA5-10 Auxiliary Contact Block



CA5-10 is a 1-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on A serie contactors and N serie contactor relays. CA5-10 is available with 1 N.O. instantaneous contacts for standard industrial environments. CA5-10 in W version is available in multiple packing.





產品凈寬: 11 mm
產品凈深: 32.5 mm
產品凈高: 47 mm
產品凈重: 0.014 kg
技術參數
電氣切換頻率: 1200 cycles per hour
機械切換頻率: 3600 cycles per hour
機械壽命: 10 million
3 million
***小切換容量: A9 ... A75 17 / 5 VLT4K
A95 ... A110 24 / 50 VLT4K
安裝位置: Front face
安裝類型: Front mounting
輔助觸點NC數量: 0
輔助觸點NO數量: 1
極數: 1
功率損耗: at Rated Operating Conditions per Pole 0.1 W
額定頻率 (f): Auxiliary Circuit 50 / 60 Hz
額定絕緣電壓 (Ui): acc. to IEC 60947-5-1 690 V
acc. to UL/CSA 600 V
額定工作電流 AC-15 (Ie): (500 V) 2 A
(690 V) 2 A
(24 / 127 V) 6 A
(220 / 240 V) 4 A
(380 / 400 V) 3 A
額定工作電流 DC-13 (Ie): (24 V) 6 A / 144 W
(48 V) 2.8 A / 134 W
(72 V) 1 A / 72 W
(110 V) 0.55 A / 60 W
(125 V) 0.55 A / 69 W
(220 V) 0.30 A / 66 W
(250 V) 0.3 / 75 W
額定工作電壓: Auxiliary Circuit 690 V
額定不間斷電流 (Icw): for 0.1 s 140 A
for 1 s 100 A
評論: 100
短路保護設備: Auxiliary Circuit - gG Type Fuses 10 A
適用于: AF45
AF50
AF63
AF75
AF95B
GAF75
A9
A12
A16
A26
A30
A40
A45
A50
A63
A75
A95
A110
AL9
AL9Z
AL12
AL12Z
AL16
AL16Z
AL26
AL30
AL40
AE45
AE50
AE63
AE75
TAL9
TAL12
TAL16
TAL26
TAL30
TAL40
TAE45
TAE50
TAE75
GA75
GAE75
UA16
UA26
UA30
UA50
UA63
UA75
UA95
UA110
UA16RA
UA26RA
UA30RA
UA50RA
UA63RA
UA75RA
UA95RA
UA110RA
UAF75RA
UAF95RA
UAF110RA
N22E
N31E
N40E
NL22E
NLZ22E
NL31E
NLZ31E
NL40E
NLZ40E
TNL22E
TNL31E
TNL40E
端子類型: Screw Terminals
UL/CSA適用的技術參數
接觸元件的引導功率符合UL508標準: A600
Q300
環境條件
Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
防護等級: acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
REACH Declaration: 2CMT2021-006202
RoHS信息: 2CMT2021-006277
RoHS狀態: Following EU Directive 2011/65/EU
WEEE B2C / B2B: Business To Business
WEEE 類別: 5. Small Equipment (No External Dimension More Than 50 cm)
認證及聲明（文件編碼）
CB認證: CB_SE_30112
CCC認證: CCC_2013010304604041
CCC_2004010305133985
CQC認證: CQC2013010304604041
CQC2004010305133985
Declaration of Conformity - CCC: 2020980304001626
2020980305001185
符合性聲明 - CE: 1SBD250809U1000
Declaration of Conformity - UKCA: 1SBD250826U1000
DNV GL Certificate: DNV_GL_TAE00001UT
EAC認證: EAC_RU C-FR ME77 B03391
GOST認證: GOST_POCCFRME77B07175
UL認證: UL_071301E48139
