簡介：

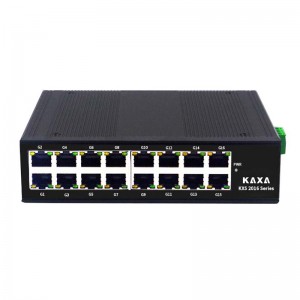

KXS2016系列交換機是入門級非網管交換機，是專為工業自動化控制領域設計的產品。KXS2016系列支持16個電口。IP40防護等級的金屬外殼。支持寬溫(-30~75℃)和寬電壓(DC12~57V)的工作環境，滿足不同的工業應用要求，確保設備在惡劣的工業環境中實現快速和可靠的數據傳輸。
優勢和特點：
● 寬電壓、耐高低溫
● 采用工業級元器件，整機端口防雷4000V
● 雙電源冗余，支持接反保護
● IP40等級防護，**金屬外殼，堅固可靠
型號規格：
|
型號
Model
|
KXS 2016 Series
|
|
標準協議
Standard Protocol
|
IEEE802.3 | IEEE802.3i | IEEE802.3u | IEEE802.3af | IEEE802.3at
|
|
交換方式
Switch Type
|
存儲與轉發Store and forward
|
|
安全
Security
|
IEEE 802.3x full duplex, back pressure flow control
|
|
MAC地址表大小
MAC Table
|
32K
|
|
包緩沖區大小
Packet Buffer
|
3.2Mbit
|
|
包轉發率
Mpps
|
14.8Mpps
|
|
交換延遲
Switching Delay
|
<10μs
|
|
背板帶寬
Gbps
|
48 GHz
|
|
工作模式
Working Mode
|
全雙工full duplex
|
|
應用層級
Level
|
二層Layer 2
|
|
網管模式
Management Support
|
非網管
|
|
VLAN功能
VLAN Function
|
Support 4 VLANs | support guest VLAN, voice VLAN support GVRP, GMRP protocol |
support MUX VLAN function | Supports MAC/protocol/IP subnet/policy/port based VLAN |
Supports 1:1 and N:1 VLAN mapping function error correction
|
|
安全管理
Security Management
|
Support user level management and password protection |
Support to prevent ARP, unknown multicast message, broadcast message, unknown unicast message,
TTL = 1 message, protocol message and other attacks |
Support MAC address restriction | Support IP + MAC + port binding function |
Support IEEE 802.1x | Support radius and AAA |
Support web authentication | Support SNMPv3 | Support broadcast message suppression
|
|
網管功能
Network Management
|
Support network management system and web network management features | Support ACL policy management | Support RSTP | Support ERP | Support DHCP snooping | Support loop detection | Support broadcast storm filtering | Support port mirroring, port isolation |
Support link aggregation | Support Poe management | Support SNMP V1 / V2 / V3 | Support Sflow | Support NQA | Support LLDP/LLDP-MED | Support NTP clock | Support system work log
|
|
Qos支持
Qos Support
|
Support SP / WRR / SP + WRR queue scheduling | Support 802.1p, DSCP priority mapping |
Support port speed limit
|
|
組播管理
Multicast Management
|
Support IGMP V1 / V2 / V3 snooping | Support PIM snooping | Support multicast VLAN |
Support IPv6 Multicast settings
|
|
光纖接口
Optical fiber interface
|
1000BaseFX端口(SC接口 ),1000Base-X(SFP接口) |
|
RJ45接口
RJ45 interface
|
10/100/1000BaseT(X)自動偵測 |
|
接口數量
Number of port
|
16-18
|
|
尺寸
Dimensions
|
165mm×140mm×45mm
|
|
重量
Weight
|
2.35Kg
|
|
防護等級
Protection level
|
IP40
|
|
安裝方式
Installation mode
|
DIN卡軌式或壁掛式 DIN clip-rail or wall-mounted
|
|
電磁兼容性
Electromagnetic Compatibility
|
四級Level 4
|
|
輸入電壓
Input Voltage
|
12-57 VDC
|
|
接入端子
Terminal Insert
|
4P 5.08mm 間距式插入
|
|
保護支持
Protect Support
|
Overload; Reverse connection; Redundancy
|
|
工作溫度
Operating Temp
|
-30~75°C
|
|
存儲溫度
Storage Temp
|
-30~75°C
|
|
安規認證
Safety Certification
|
CE | FCC
|
|
平均無故障時間
MTBF
|
600000h
|
|
說明書下載
Download
|
KXS 2016 Series
|
