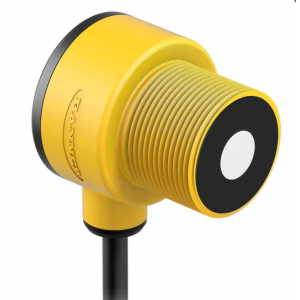

邦納超聲波傳感器T30UXIA
點擊圖片查看原圖
品牌： 邦納
品牌： 邦納
型號： T30UXIA
單價： 面議
所在地： 上海
有效期至： 長期有效
最后更新： 2025-02-12 17:29
瀏覽次數： 30
詢價
店鋪基本資料信息

 產品詳細說明
邦納超聲波傳感器T30UXIA
邦納傳感器
T30UX Series w/ Analog Output

Range: 100 mm - 1 m; Input: 10-30 V dc

Analog Output: 4-20 mA

2 m (6.5 ft) Cable

零部件號： 80479
Cable Length (m)
2
Power
DC
Sensing Beam
Ultrasonic
NEMA / UL Type Rating
NEMA 4X
IP Rating
IP67
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Time of Flight
Housing Style
Barrel
Device Type
Sensor
Primary Housing Material
PBT
Input Output
Analog
Connection
Flying Leads
Analog Output Configuration
4-20 mA
Max Sensing Distance (mm)
1000
Minimum Sensing Distance (mm)
100
Power Supply
10-30 V dc
Adjustments
Teach Button
Number of Pins
4
Max Operating Temperature (°C)
70
Min Operating Temperature (°C)
-40
Minimum Response Time (ms)
45
Barrel Thread
M30
Ultrasonic Frequency (kHz)
224
Feature: Remote Teach
Yes
Feature: Clear Object Detection
Yes
Application: Ultrasonic
Yes
EPLAN Status
Published
EPLAN Original Sent Date
12/08/2021
