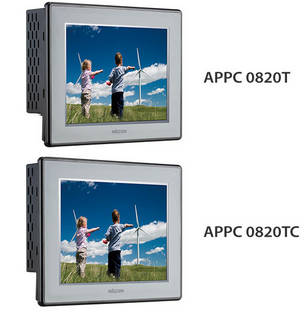

APPC 0820T/0820TC采用8" 4:3觸摸屏，分辨率高達800x600 (SVGA) ，400尼特亮度，無風扇設計，基于 Atom™ D525 處理器。專用的工業母板不僅具有高擴展性能，且易于維護。前面板可承受高壓水射流，符合IP65保護等級。觸摸屏具有耐用、可靠、防劃等特點，可滿足多種應用。

而超薄APPC 0820TC適用于例如訪問控制、小型自動化機械、叉車和卡車等對空間要求較高的應用。雖然尺寸緊湊，但是其I/O功能豐富——1個電源開關、1個復位、1個RS-232、2個USB、1個 Line-out 和1個VGA。對于較復雜的自動化程序，APPC 0820T 可提供比其他8個平板電腦更豐富的I/O選項，除了標配的1個電源開關、1個復位、1個RS-232、2個USB、1個 Line-out 和1個VGA，還可支持額外的功能，包括2個USB、1個 Line-in、1個Mic-in、1個RS232/422/485、1個GPIO 和 PS/2 鍵盤鼠標等。

面板 LCD Size: 8", 4:3 Resolution: SVGA 800x600 Luminance: 400cd/m2 Contrast ratio: 500 LCD color: 262K Viewing angle: 50(U), 70(D), 70(L), 70(R) Backlight: LED Touch screen: 5-wire resistive (flush panel type) Touch light transmission: 82% Touch interface: USB

系統 CPU: Intel® Atom™ D525, 1.8GHz BIOS: AMI BIOS System chipset: Intel® ICH8M System memory: 1x 204-pin DDR3 SO-DIMM socket, 1G DDR3 (Default), Support up to 2GB DDR3 800, Non-ECC and Un-buffered Storage:

APPC 0820TC: (Choice of one)

SSD: CF socket by IDE support Type I/II compact Flash card (SATA to CF converter board (Optional))

Hard drive bay: optional 2.5" SATA HDD

SATA DOM (Optional)

APPC 0820T: (Choice of one)

SSD: CF socket by IDE support Type I/II compact Flash card (Build in SATA to CF converter board)

Hard drive bay: optional 2.5" SATA HDD

SATA DOM (Optional)

HDD and choice of CF or SATA DOM Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (Tolerance 15% under room temperature 25°C) H/W status monitor: Monitoring system temperature, and voltage Expansion: 1x Mini-PCIe sockets

后置I/O界面 APPC 0820TC:

COM #1: RS232

Ethernet: 2 x RJ45

2nd display VGA port: 1 x DB15

Audio port: 1 x Line out

USB: 2 x USB 2.0

Power switch

Reset button APPC 0820T:

GPIO: 4 x digital in / 4 x digital out

COM #1: RS232

COM #2: RS232/422/485

Ethernet: 2 x RJ45

2nd display VGA port: 1 x DB15

Audio port: 1 x Line out; 1 x Line in; 1 x MIC-in

USB: 4 x USB 2.0

PS2 keyboard/ mouse

Power switch

Reset button

音頻 AC97 codec: Realtek ALC888 Audio interface: Line out/Line in/MIC-in Audio Jack

以太網 LAN chip: dual Intel® 82574L Gigabit LAN Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible

外觀&運行環境 Color: pantone black IP protection: IP65 front Mounting: panel/ wall/ stand/ VESA 100mm x 100mm Power input: 12V DC Power adapter: Optional AC to DC power adaptor (+12V, 60W) Vibration:

IEC 68 2-64 (w/ HDD)

0.5Grms @sine, 5~500Hz, 1hr/axis (HDD Operating)

2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating) Shock:

IEC 68 2-27

HDD: 20G@wall mount, half sine, 11ms

Operating temperature: -5°C to 50°C Storage temperature: -20°C to 75°C Operating humidity: 10%~90% relative humidity, non-condensing Dimension:

APPC0820T: 217.4 x 176.4 x 61.9 mm

APPC0820TC: 217.4 x 176.4 x 46.7 mm Weight:

APPC0820T: 2Kg

APPC0820TC: 1.7Kg

認證 CE approval FCC Class A
