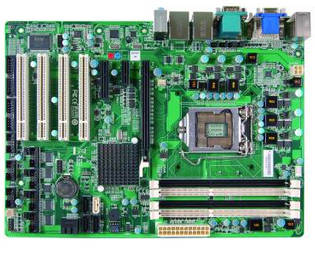

集智達工控機 工業母板 AMB-B75VL2G

點擊圖片查看原圖

店鋪基本資料信息

產品詳細說明

Intel Socket LGA1155 ATX Industrial B75 MB supports VGA/DVI, 2 x INTEL GbE, 6 SATA, 6 COM and HD Audio

System
CPU	LGA1155 socket supports Intel® Core i7/i5/i3/Pentium®/Celeron® processor(TDP 95W)
Chipset	INTEL B75 chipset(Q77 by Option)
System memory	4 x 240pin DDR3 1600MHz SDRAM up to 32GB
BIOS	AMI 64Mb Flash ROM
Watchdog Timer	Reset: 1~65535 level
H/W Monitor	CPU voltage/ CPU & System Temperature CPU & System fan speed/ CPU fan speed control
Expansion	1 x PCIex16, 1 xPCIe x1, 1 xPCIe x4, 4 x PCI
I/O
MIO	1 x PS/2 KB/MS, 1 x RS232/422/485, 5 x RS-232, 5 x SATAII 3Gb/s, 1 x SATAIII 6Gb/s, LPT x1TPM 1.2
Ethernet	1 x INTEL 82574LM for PCIe Gigabit LAN 1 x INTEL 82579V for PCIe Gigabit LAN ( Intel® AMT 8.0 support by Q77 Option)
Audio	REALTEK CODEC ALC892
USB	12 x USB 2.0 ports (6 via pin-header)
Digital I/O	4 input; 4 output
Display
Chipset	Intel® Integrated Graphic
Display Memory	Max. shared system memory up to 1759MB
Resolution	VGA: Max. upto 2048 x 1536 at 75Hz DVI-D: Max. upto 1920 x 1200 at 60Hz
Mechianical & Environmental
Power Type	ATX
Operating Temperature	0C~60C
Operating Humidity	10%~90%
Size(L x W)	305mm x 220mm (ATX Form Factor)
