應用范圍

Liquids, also in non-conductive vessels

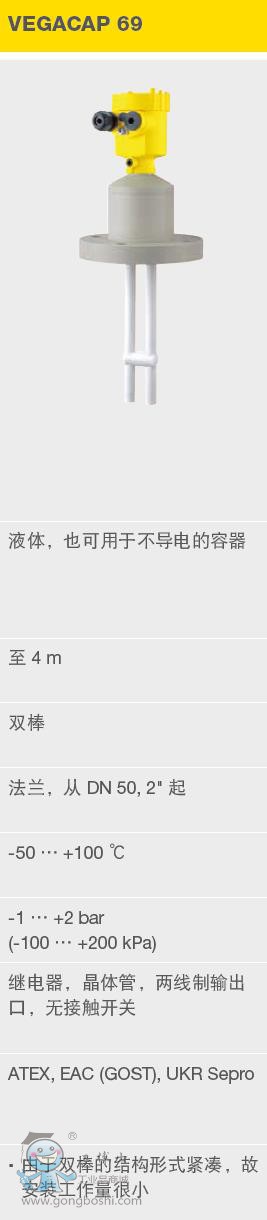

VEGACAP69用于限位檢測不導電容器中的液體或腐蝕性液體。雙棒測量電極采用全絕緣，具有很高的化學穩定性。

您的獲益

• Simple use in non-condcutive vessels due to ground rod
• Low mounting expenditure through compact double rod version
• Long service life and low maintenance due to high resistance materials

技術參數

Measuring range - Distance

4 m

Process temperature

-50 ... 100 °C

Process pressure

-1 ... 2 bar

Version

FEP insulation

Materials,-wetted-parts

§ PTFE

§ PP

§ FEP

Flange connection

≥ DN50, ≥ 2"

Seal-material

no media contact

Housing-material

Plastic

Protection-rating

IP 66/IP 67

Output

§ Relay (DPDT)

§ Contactless electronic switch

§ Transistor (NPN/PNP)

§ Two-wire

Ambient temperature

-40 ... 80 °C
