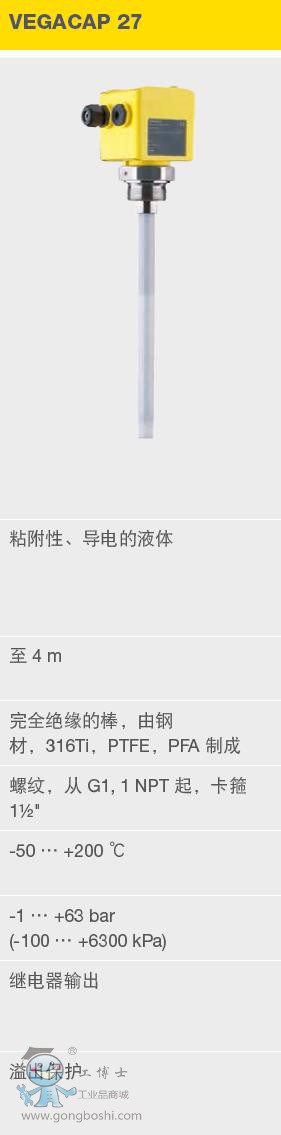

VEGA VEGACAP 27 電容式限位傳感器
由于可以在無介質情況下進行簡單調試，故時間和成本*小
即使在嚴重粘附的情況下開關點依然***
應用范圍
Adhesive, conductive liquids
VEGACAP 27不需調試，用作測量液體液體的電容式物位開關。典型應用是溢出保護或防止空轉。被測介質的介電常數大于1.5。
您的獲益
- Long lifetime and low maintenance requirement through robust mechanical construction
- Minimum time and cost expenditure thanks to simple setup without medium
- Exact switching point even with strong buildup
技術參數
Measuring range - Distance
4 m
Process temperature
-50 ... 200 °C
Process pressure
-1 ... 63 bar
Version
PTFE insulation
Materials,-wetted-parts
§ PTFE
§ 316Ti (1.4571)
§ Steel
Threaded-connection
≥ G1, ≥ 1 NPT
Hygenic fittings
§ Clamp ≥ 2", DN50 - DIN32676, ISO2852
§ Clamp ≥ 1½" - DIN32676, ISO2852
§ Slotted nut ≥ 2", DN50 - DIN 11851
Seal-material
no media contact
Housing-material
§ Plastic
§ Aluminium
Protection-rating
IP 66/IP 67
Output
Relay (DPDT)
Ambient temperature
-40 ... 80 °C
