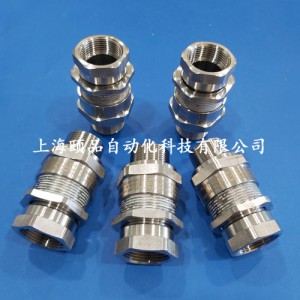

CMP非鎧接管式防爆格蘭（A2FRC系列）

上海頤品代理英國(guó)CMP防爆格蘭，CMP防爆變徑，CMP防爆堵頭，CMP防爆呼吸閥等產(chǎn)品

CMP A2FRC Globally Approved, Rigid & Flexible Conduit Explosive Atmosphere Cable Gland
For all types of Unarmoured & Braid Armour Cables housed in Conduit

Designed for rigid & flexible conduits
Easy install running coupler design
Displacement type flameproof seal
Designed to prevent Coldflow
-60?C to +130?C
Globally marked, IECEx, ATEX & CSA

THREAD OPTION ORDERING EXAMPLES

Ordering Reference Male Thread Female Thread
20 A2FRC1RA M20 M20 SS316L
20 A2FRC1RA031 M20 1/2” NPT SS316L
20 A2FRC1RA03131 1/2” NPT 1/2” NPT SS316L
20 A2FRC1RA03101 1/2” NPT M20 SS316L

TECHNICAL DATA
Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications* Impact = Level 8, Retention = Class B
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
ATEX Certificate SIRA13ATEX1068X, SIRA13ATEX4074X
Code of Protection  ^ II 2G II 1D Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da , II 3G Ex nR IIC Gc
Compliance Standards EN 60079-0,1,7,15,31
IECEx Certificate IECEx SIR 13.0023X, IECEx SIM 14.0006
Code of Protection Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
Compliance Standards IEC 60079-0,1,7,15,31
CSA Certificate 1211841
Code of Protection Ex d IIC, Ex e II, Ex nR II, Enclosure Type 4x
Compliance Standards C22.2 No 0,0.4, 94,174, CAN/CSA-E60079-0,1,7, 15
EAC Certificate (Formerly GOST R, K & B) TC RU C-GB.ГБ05.B00138
KCC Certificate 14-GA4BO-0251X
CCOE / PESO (India) Certificate P333688
NEPSI Certificate  GYJ13.1140X / GYJ13.1282X
INMETRO Approval TüV 12.0878X
RETIE Approval Number 03866
Marine Approvals LRS: 01/00172 (E3), DNV: E-13848
Ingress Protection Rating IP66**
Cable Gland Material Brass, Electroless Nickel Plated Brass, Aluminium, Stainless Steel
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Cable Type Unarmoured & Braided
Sealing Technique CMP Unique Displacement Seal Concept
Sealing Area(s) Cable Outer Sheath
