CMP防爆呼吸閥（CMP 781-Breather Drain Plug）
點擊圖片查看原圖
品牌： CMP防爆呼吸閥
CMP防爆呼吸閥： 781系列
單價： 298.60元/只
所在地： 上海
有效期至： 長期有效
最后更新： 2024-11-19 09:11
瀏覽次數： 526
詢價
店鋪基本資料信息

 產品詳細說明
 英國CMP防爆呼吸閥（CMP 781 | Breather / Drain Plug）

CMP防爆格蘭代理商: 上海頤品自動化科技有限公司

CMP防爆格蘭代理商：上海頤品自動化科技有限公司

關鍵詞：CMP防爆格蘭，CMP防爆葛蘭，CMP防爆填料函，CMP防爆密封接頭

CMP非鎧防爆格蘭，CMP鎧裝防爆格蘭，CMP防爆變徑，CMP防爆呼吸閥堵頭

781 | Breather / Drain Plug

Available in brass, nickel plated brass, aluminium, stainless steel & nylon



781 Breather Plug & Drain Plugs Breather Plug & Drain Plugs,

Globally Approved, Explosive Atmosphere Cable / Conduit Accessory

• 781E for Ex e use
• 781D for Ex d use
• Drains equipment susceptible to moisture collection
• Enables equipment to breathe
• General purpose / industrial version available
• Nylon Ex e only version available (-20°C to +60°C)
• -60°C to 130°C (metallic versions)
• Globally marked, IECEx, ATEX & cCSAus

HOW TO ORDER A guide on how to order Breather Plug & Drain Plugs from CMP:

e.g. 781-D-M-3 = Ex d – M25 e.g. 781-E-M-3 = Ex e -M25

Other Thread Variations are available on request. For further information on ordering please refer to how to order. The CMP 781E range of Increased Safety type ‘e’ breather plug / drain plugs have been tested together with CMP serrated washers to ensure that in areas that are subject to vibration, the breather plug / drain plugs do not suffer from self-loosening and in advertently fall out of the enclosure. Serrated washers are not included as standard but can be ordered separately.

If you require further information, please contact EPIN AUTOMATION



CERTIFICATES

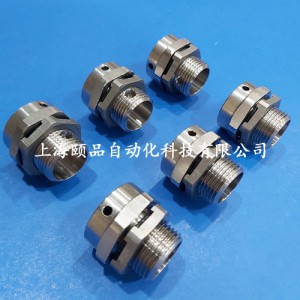

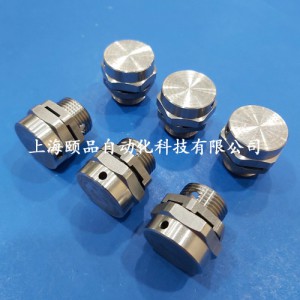

  • CMP防爆呼吸閥（781 Breather / Drain Plug）示例圖1  CMP防爆呼吸閥（781 Breather / Drain Plug）示例圖2 CMP防爆呼吸閥（781 Breather / Drain Plug）示例圖3 CMP防爆呼吸閥（781 Breather / Drain Plug）示例圖4 CMP防爆呼吸閥（781 Breather / Drain Plug）示例圖5 CMP防爆呼吸閥（781 Breather / Drain Plug）示例圖6 CMP防爆呼吸閥（781 Breather / Drain Plug）示例圖7CMP防爆呼吸閥（781 Breather / Drain Plug）示例圖8

  •  CMP防爆呼吸閥（781 Breather / Drain Plug）示例圖9 CMP防爆呼吸閥（781 Breather / Drain Plug）示例圖10CMP防爆呼吸閥（781 Breather / Drain Plug）示例圖11 CMP防爆呼吸閥（781 Breather / Drain Plug）示例圖12  CMP防爆呼吸閥（781 Breather / Drain Plug）示例圖13 CMP防爆呼吸閥（781 Breather / Drain Plug）示例圖14

PRODUCT SELECTION TABLE

CMP防爆格蘭代理商: 上海頤品自動化科技有限公司

Ordering Reference
(781D)		 Ordering Reference
(781E)		 Thread Size Minimum Thread Length Protrusion Length 'F' Across Flats Dimension Across Corners Dimensions Max Installation Torque (Nm)
781DM2 781EM2 M20 x 1.5 15.0 12.7 30.0 33.0 7
781DM3 781EM3 M25 x 1.5 15.0 12.7 36.0 39.6 10
781DT1 781ET1 ½' NPT 19.9 12.7 30.0 33.0 7
781DT2 781ET2 ¾' NPT 20.2 12.7 36.0 39.6 10
Dimensions displayed in millimeters unless otherwise stated

CMP防爆呼吸閥（781 Breather / Drain Plug）示例圖15

CMP防爆呼吸閥（CMP 781 Breather / Drain Plug）

Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II

CMP防爆格蘭代理商：上海頤品自動化科技有限公司

關鍵詞：CMP防爆格蘭，CMP防爆變徑，CMP防爆堵頭，CMP防爆呼吸閥

CMP防爆格蘭等產品規格書及相關證書-請咨詢上海頤品自動化科技有限公司

CMP防爆格蘭代理商: 上海頤品自動化科技有限公司
