Eaton庫柏Cooper非鎧防爆格蘭（AD1-2F系列）
點擊圖片查看原圖
品牌： Eaton庫柏Cooper防爆格蘭
Cooper防爆格蘭： AD1-2F系列
單價： 98.60元/只
所在地： 上海
有效期至： 長期有效
最后更新： 2024-11-19 09:11
瀏覽次數： 501
詢價
店鋪基本資料信息

 產品詳細說明

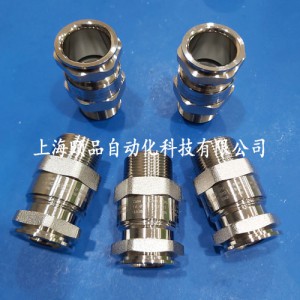

 Eaton庫柏Cooper非鎧防爆格蘭（AD1-2F系列）

Eaton代理商：上海頤品自動化科技有限公司

關鍵詞：Eaton防爆格蘭，cooper防爆密封接頭，Capri防爆填料函，庫柏防爆鎧裝格蘭，

Cooper非鎧防爆格蘭，Raxton防爆變徑，Redapt防爆堵頭，Raxton防爆呼吸閥，庫柏防爆箱

Eaton-庫柏Cooper-Capri非鎧防爆格蘭ADE-1F2系列
ADE-1F2 - for non-armoured cable
Eaton-Capri代理商：上海頤品自動化科技有限公司
關鍵詞：Eaton防爆格蘭，庫柏Cooper防爆格蘭，Capri防爆格蘭，Raxton/Redapt防爆連接件
Suitable for the following cable types:
1、Non-armoured cable  2、Marine shipboard cable;  3、Type P cable Tray cable
Operating temperature: -60°C to +140°C
Material: Nickel-plated brass for superior corrosion resistance.
316L stainless steel, bronze and aluminum options available.
It is recommended that a suitable lubricant is used on all threads of stainless steel and aluminum versions. Ingress protection (IP): IP66 / IP68 according to the method of attachment and the condition of the equipment area, see page 13.
Certifications and compliances:

ATEX certificate no: INERIS12ATEX0032X Zones 1 and 2, Groups IIA,

IIB and IIC Zones 21 and 22 Groups IIIA, IIIB and IIIC II2GD / Ex db IIC / Ex eb IIC / Ex tb IIIC II3G Ex nRc IIC

IECEx certificate no: IECEx INE 12.0025X Zones 1 and 2, Groups IIA,

IIB and IIC Zones 21 and 22, Groups IIIA, IIIB and IIC Ex db IIC / Ex eb IIC / Ex nRc IIC / Ex tb IIIC

訂貨號 產品系列 材質 產品描述-上海頤品自動化科技有限公司
CAP806404V1 Cable gland ADE 1F2 NP. Type 4-M16,    φ4.5-8.5 mm  , L=15 mm
CAP806409V1 Cable gland ADE 1F2 SS. Type 4-M12,    φ4.5-8 mm  , L=15 mm
CAP806504V1 Cable gland ADE 1F2 NP. Type 5-M16,    φ7-12 mm  , L=15 mm
CAP806509V1 Cable gland ADE 1F2 SS. Type 5-M16,    φ7-12 mm  , L=15 mm,
CAP806594V1 Cable gland ADE 1F2 NP. Type 4-M16,    φ4.5-8.5 mm  , L=15 mm,
CAP806599V1 Cable gland ADE 1F2 SS. Type 4-M16,    φ4.5-8.5 mm  , L=15 mm,
CAP806604V1 Cable gland ADE 1F2 NP. Type 6-M20,    φ10-16 mm  , L=15 mm,
CAP806609V1 Cable gland ADE 1F2 SS. Type 6-M20,    φ10-16 mm  , L=15 mm,
CAP806664V1 Cable gland ADE 1F2 NP. Type 3-M20,    φ2.75-5.5 mm  , L=15 mm,
CAP806669V1 Cable gland ADE 1F2 SS. Type 3-M20,    φ2.75-5.5 mm  , L=15 mm,
CAP806674V1 Cable gland ADE 1F2 NP. Type 4-M20,    φ4.5-8.5 mm  , L=15 mm,
CAP806679V1 Cable gland ADE 1F2 SS. Type 4-M20,    φ4.5-8.5 mm  , L=15 mm,
CAP806694V1 Cable gland ADE 1F2 NP. Type 5-M20,    φ7-12 mm  , L=15 mm,
CAP806699V1 Cable gland ADE 1F2 SS. Type 5-M20,    φ7-12 mm  , L=15 mm,
CAP806704V1 Cable gland ADE 1F2 NP. Type 7-M25,    φ13.5-20.5 mm  , L=15 mm,
CAP806709V1 Cable gland ADE 1F2 SS. Type 7-M25,    φ13.5-20.5 mm  , L=15 mm,
CAP806774V1 Cable gland ADE 1F2 NP. Type 5-M25,    φ7-12 mm  , L=15 mm,
CAP806779V1 Cable gland ADE 1F2 SS. Type 5-M25,    φ7-12 mm  , L=15 mm,
CAP806794V1 Cable gland ADE 1F2 NP. Type 6-M25,    φ10-16 mm  , L=15 mm,
CAP806799V1 Cable gland ADE 1F2 SS. Type 6-M25,    φ10-16 mm  , L=15 mm,
CAP806804V1 Cable gland ADE 1F2 NP. Type 8-M32,    φ18-27.5 mm  , L=15 mm,
CAP806809V1 Cable gland ADE 1F2 SS. Type 8-M32,    φ18-27.5 mm  , L=15 mm,
CAP806904V1 Cable gland ADE 1F2 NP. Type 9-M40,    φ23-34 mm  , L=15 mm,
CAP806909V1 Cable gland ADE 1F2 SS. Type 9-M40,    φ23-34 mm  , L=15 mm,
CAP807004V1 Cable gland ADE 1F2 NP. Type 10-M50,    φ29-41 mm  , L=16 mm,
CAP807009V1 Cable gland ADE 1F2 SS. Type 10-M50,    φ29-41 mm  , L=16 mm,
CAP807084V1 Cable gland ADE 1F2 NP. Type 11-M50,    φ35-45 mm  , L=16 mm,
CAP807089V1 Cable gland ADE 1F2 SS. Type 11-M50,    φ35-45 mm  , L=16 mm,
CAP807204V1 Cable gland ADE 1F2 NP. Type 12-M63,   φ 42-56 mm  , L=17 mm,
CAP807209V1 Cable gland ADE 1F2 SS. Type 12-M63,    φ42-56 mm  , L=17 mm,
CAP807304V1 Cable gland ADE 1F2 NP. Type 13-M75,    φ50-65 mm  , L=18 mm,
CAP807309V1 Cable gland ADE 1F2 SS. Type 13-M75,    φ50-65 mm  , L=18 mm,
CAP807504V1 Cable gland ADE 1F2 NP. Type 15-M90,    φ66-83 mm  , L=22 mm,
CAP807509V1 Cable gland ADE 1F2 SS. Type 15-M90,    φ66-83 mm  , L=22 mm,
CAP807594V1 Cable gland ADE 1F2 NP. Type 14-M90,    φ58-74 mm  , L=22 mm,
CAP807599V1 Cable gland ADE 1F2 SS. Type 14-M90,    φ58-74 mm  , L=22 mm,
CAP807604V1 Cable gland ADE 1F2 NP. Type 16-M110,    φ75-93 mm  , L=22 mm,
CAP807609V1 Cable gland ADE 1F2 SS. Type 16-M110,    φ75-93 mm  , L=22 mm,
CAP807704V1 Cable gland ADE 1F2 NP. Type 17-M110,   φ85-104 mm  , L=22 mm,
CAP807709V1 Cable gland ADE 1F2 SS. Type 17-M110,    φ85-104 mm  , L=22 mm,
CAP808604V1 Cable gland ADE 1F2 NP. Type 6-1/2'',    φ10-15.5 mm  , L=22.2 mm,
CAP808609V1 Cable gland ADE 1F2 SS. Type 6-1/2'',    φ10-15.5 mm  , L=22.2 mm,
CAP808664V1 Cable gland ADE 1F2 NP. Type 3-1/2'',    φ2.75-5.5 mm  , L=22.2 mm,
CAP808669V1 Cable gland ADE 1F2 SS. Type 3-1/2'',    φ2.75-5.5 mm  , L=22.2 mm,
CAP808674V1 Cable gland ADE 1F2 NP. Type 4-1/2'',    φ4.5-8.5 mm  , L=22.2 mm,
CAP808679V1 Cable gland ADE 1F2 SS. Type 4-1/2'',    φ4.5-8.5 mm  , L=22.2 mm,
CAP808694V1 Cable gland ADE 1F2 NP. Type 5-1/2'',    φ7-12 mm  , L=22.2 mm,
CAP808699V1 Cable gland ADE 1F2 SS. Type 5-1/2'',    φ7-12 mm  , L=22.2 mm,
CAP808704V1 Cable gland ADE 1F2 NP. Type 7-3/4'',    φ13.5-20.5 mm  , L=22.5 mm,
CAP808709V1 Cable gland ADE 1F2 SS. Type 7-3/4'',    φ13.5-20.5 mm  , L=22.5 mm,
CAP808774V1 Cable gland ADE 1F2 NP. Type 5-3/4'',    φ7-12 mm  , L=22.5 mm,
CAP808779V1 Cable gland ADE 1F2 SS. Type 5-3/4'',    φ7-12 mm  , L=22.5 mm,
CAP808794V1 Cable gland ADE 1F2 NP. Type 6-3/4'',    φ10-16 mm  , L=22.5 mm,
CAP808799V1 Cable gland ADE 1F2 SS. Type 6-3/4'',    φ10-16 mm  , L=22.5 mm,
CAP808804V1 Cable gland ADE 1F2 NP. Type 8-1'',    φ18-26 mm  , L=27.3 mm,
CAP808809V1 Cable gland ADE 1F2 SS. Type 8-1'',    φ18-26 mm  , L=27.3 mm,
CAP808904V1 Cable gland ADE 1F2 NP. Type 9-1 1/4'',    φ23-34 mm  , L=28 mm,
CAP808909V1 Cable gland ADE 1F2 SS. Type 9-1 1/4'',    φ23-34 mm  , L=28 mm,
CAP809004V1 Cable gland ADE 1F2 NP. Type 10-1 1/2'',    φ29-41 mm  , L=28.5 mm,
CAP809009V1 Cable gland ADE 1F2 SS. Type 10-1 1/2'',    φ29-41 mm  , L=28.5 mm,
CAP809204V1 Cable gland ADE 1F2 NP. Type 12-2'',    φ42-53 mm  , L=29.2 mm,
CAP809209V1 Cable gland ADE 1F2 SS. Type 12-2'',    φ42-53 mm  , L=29.2 mm,
CAP809294V1 Cable gland ADE 1F2 NP. Type 11-2'',    φ35-48 mm  , L=29.2 mm,
CAP809299V1 Cable gland ADE 1F2 SS. Type 11-2'',    φ35-48 mm  , L=29.2 mm,
CAP809404V1 Cable gland ADE 1F2 NP. Type 13-2 1/2'',    φ50-62.5 mm  , L=42.5 mm,
CAP809409V1 Cable gland ADE 1F2 SS. Type 13-2 1/2'',    φ50-62.5 mm  , L=42.5 mm,
CAP809504V1 Cable gland ADE 1F2 NP. Type 15-3'',    φ66-78 mm  , L=44 mm,
CAP809509V1 Cable gland ADE 1F2 SS. Type 15-3'',    φ66-78 mm  , L=44 mm,
CAP809594V1 Cable gland ADE 1F2 NP. Type 14-3'',    φ58-74 mm  , L=44 mm,
CAP809599V1 Cable gland ADE 1F2 SS. Type 14-3'',    φ58-74 mm  , L=44 mm,
CAP809604V1 Cable gland ADE 1F2 NP. Type 16-3 1/2'',    φ75-92 mm  , L=45.2 mm,
CAP809609V1 Cable gland ADE 1F2 SS. Type 16-3 1/2'',   φ75-92 mm  , L=45.2 mm,
CAP809704V1 Cable gland ADE 1F2 NP. Type 17-4'',    φ82-104 mm  , L=46.5 mm,
CAP809709V1 Cable gland ADE 1F2 SS. Type 17-4'',    φ82-104 mm  , L=46.5 mm,


Eaton-庫柏Cooper-Capri非鎧防爆格蘭ADE-1F2系列
ADE-1F2 - for non-armoured cable
Eaton-Cooper代理商：上海頤品自動化科技有限公司
關鍵詞：Eaton防爆格蘭，庫柏Cooper防爆格蘭，Capri防爆格蘭，Raxton/Redapt防爆連接件
